Buy Siglent SSA3021X Spectrum Analyzer

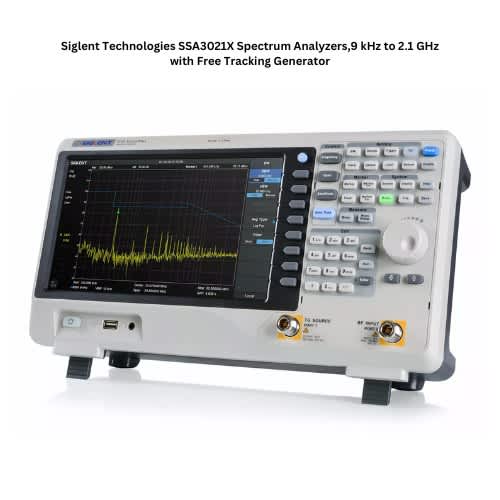

Siglent SSA3021X Spectrum Analyzer - 9 Khz To 2.1 Ghz With Free Tracking Generator

₦ 3,465,000.00 ₦ 3,500,000.00 -1%

0 No Reviews

Product SKU: RENG490525

Quantity

In Stock

Product Highlights

All-Digital IF Technology

Frequency Range from 9 kHz up to 2.1 GHz

-161 dBm/Hz Displayed Average Noise Level (Typ.)

-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)

1 Hz Minimum

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

The SIGLENT SSA3021X is a family of the SSA3000X Plus series spectrum analyzers. It is a powerful and flexible tool for RF signal and network analysis. The spectrum analyzer include demodulation functions and have better tracking generator functions than the non-plus models. They offer touchscreen control and support for mouse and keyboard that are not included with the non-Plus models.

With a frequency range to 2.1 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.

Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

Features:

Spectrum Analyser Frequency Range from 9kHz up to 2.1GHz
-161dBm/Hz Displayed Average Noise Level (Typ.)
-98dBc/Hz @ 10kHz Offset Phase Noise (1GHz, Typ.)
Level Measurement Uncertainty < 0.7 dB (Typ.)
1Hz Minimum Resolution Bandwidth (RBW)
Preamplifier Standard
Tracking Generator (Included At No Charge)
Vector Signal Modulation Analysis Mode (Opt.)
Reflection Measurement Kit (Opt.)
EMI Filter and Quasi-Peak Detector Kit (Opt.)
Advanced Measurement Kit (Opt.)
10.1 Inch Multi-Touch Screen, Mouse and Keyboard supported
Web Browser Remote Control on PC and Mobile Terminals and File Operation

Additional features of the “Plus” model Include:

Sweep speed 3~100 times faster in different RBW.
Analogue and Digital Signal Modulation Analysis Mode AM/FM/ASK/FSK/PSK/QAM (Opt.*)
Advanced EMI Measurement Mode (Opt.*)
Touch Screen, support external Keyboard & Mouse and offers a Webserver Interface.
Improved Displayed Average Noise Level.
Trace Math : Log and now Power operation.
VSWR Measurement : Open and now Short calibration
Frequency counter resolution improved.
