Omega -20°C to 250°C Temperature Handheld Thermal Imager
- Batteries Included Yes
- Battery Life 2 hours
- Battery Run Time 2 hours
- Battery Type AA
- Display Area Height 71 mm (2. in)
- Display Type Color LCD
- Emissivity 0.95 default
- Frame Rate 9 Hz
- Focus Method Focus free
- Image Capacity Stores up to 60
- Measurement Type Thermal Image
- Memory Type micro SD card
- Memory Capacity 8 GB
- Number of Batteries Included 4
- Temperature Accuracy ( Tamb 20 26 ° C) 2% of reading
- Thermal Resolution 32 x 31
- Temperature Resolution 32 x 31
- Viewing Area 40 x 40°

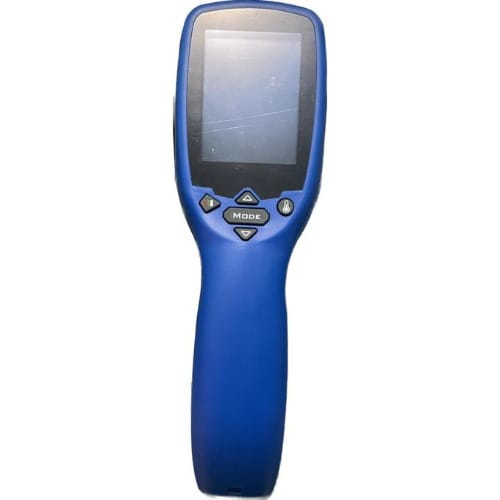

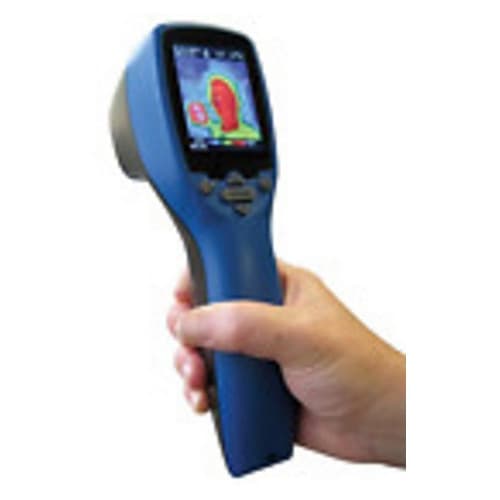

Omega’s OSXL-TIM3 thermal imaging camera measures from 20 to 250°C (4 to 482°F) and displays the thermal image and teDescriptionmperature. Plus, the OSXL-TIM3 can save the thermal images to a micro SD card (included). Software that transfers images to a PC is also included for image review and reporting of the details on the saved images.
- Modern IR thermal imaging technology
- 2.4 "LCD color display and graphic menu navigation
- Thermal image resolution of 160 x 120 pixels
- High temperature measuring range up to + 550 °C
- High quality thermal image sensor with high temperature sensitivity
- Fast thermal imaging with 25 Hz
- Four color palettes (Iron, Rainbow, White, Black)
- Crosshairs, as well as cold and hot spot display
- Minimum and maximum value display
- Photo record with internal memory
- Records with time and date documentation
- USB interface for data transfer
- Also suitable for longer ranges (e.g. building thermography)
- IP 54 protected against dust and splash water

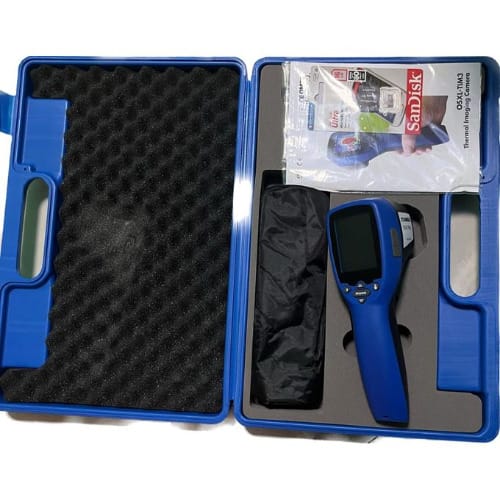

- Accessories: USB cable, software, charger and user manual
