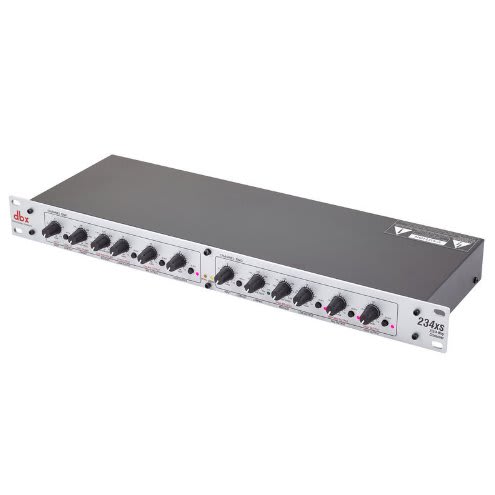

DBX 234XS Crossover - Silver
Product Description for the DBX 234XS Crossover The 234xs from dbx is a dual channel, stereo 2/3-way or mono 4-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound. The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality 1/4" TRS inputs and outputs.
DBX 234XS Crossover - Silver

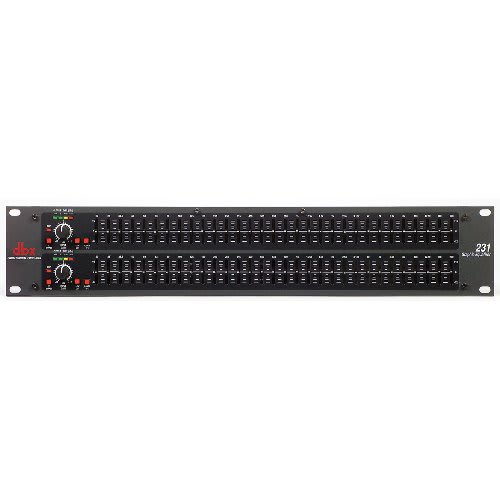

DBX 231 Dual 31 Band Graphic Equalizer - Black
With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx & reg; 231 easily lives up to the dbx reputation at a price point which can find a home in the tightest of budgets. Besides including two 31-band channels of 1/3-octave equalization, the 231 also offers & plusmn;6 or & plusmn;12 dB boost/cut range; XLR, 20mm faders and 1/4" inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability. The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers out of this world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx & reg; signal processors that are the Professional's Choice & trade;. With such affordable quality, there's no longer any excuse for compromising your sound. Features Two 31-band, 1/3-octave Constant Q frequency bands Switchable boost/cut ranges of & plusmn;6 or & plusmn;12 dB 12dB per octave 50Hz low-cut filter Front panel bypass switch & plusmn;12 dB input gain range 4-segment LED ladders for monitoring output levels XLR and TRS Inpts and Outputs Internal Toroidal Transformer Frequency Repsonse of & lt;10Hz to & gt;50kHz Dynamic range of greater than 108d Documentation Specifications Input Connectors 1/4" TRS, female XLR (pin 2 hot) Input Type Electronically balanced/unbalanced, RF filtered Input Impedance Balanced 40k ohm, unbalanced 20k ohm Max Input & gt;+21dBu balanced or unbalanced CMRR & gt;40dB, typically & gt;55dB at 1kHz Output Connectors 1/4" TRS, male XLR (pin 2 hot) Output Type Impedance-balanced/unbalanced, RF filtered Output Impedance Balanced 100 ohm, unbalanced 50 ohm Max Output & gt;+21dBu balanced/unbalanced into 2k ohm or greater; & gt;+18dBm balanced/unbalanced (into 600 ohm) Bandwidth 20Hz to 20kHz, +0.5/-1dB Frequency Response & lt;10Hz to & gt;50kHz, +0.5/-3dB Dynamic Range 108dB Signal to Noise Ratio 90dB THD+Noise & lt;0.004% Interchannel Crosstalk & lt;-80dB, 20Hz to 20kHz Bypass Switch Bypasses the graphic equalizer section in the signal path Low cut Switch Activates the 50Hz 12dB/octave high-pass filter Range Switch Selects either +/- 6dB or +/-12dB slider boost/cut range Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz Power Consumption 15W Power Connector IEC receptacle
Professional Portable Mic Rechargeable inches 10" Speaker PA System
Professional bi-amplified portable wireless PA speaker system 12'' woofer with 1.5 & rdquo; voice coil and 40oz magnet 1200 watts PMPO, 300 watts RMS (250w + 50w) from built-in amplifier Built in USB & SD reader slots For direct playback FM Radio function to listen FM radio Channels Player section includes controls for play/pause, stop, repeat and track skip Dual (2pcs) VHF handheld microphones with FCC certificate Dynamic Wireless Mics w/ 3 Position Power Switch & LED Both microphones can be work at same time Operation Range: 120ft (35 Meters) Microphone, guitar and audio & frac14;'' Inputs Echo, Bass And Treble Controls Unit powered by internal rechargeable battery pack Covers angles of 100 degrees horizontal and 60 degrees vertical Linear frequency response: 80Hz - 18 KHz (-10db) Wide dispersion horn design ABS impact resistant nylon fiber cabinet Impedance: 8 ohms Rechargeable Battery Life: Approx. 3.5 - 4.5 Hours Microphone Battery Life: Approx. 9-10 Hours Handle and wheels for easily moving Flyable and stand mounted 110/220 Voltage Switchable Dimension: 13.4'' W x 12.2'' D x 22.64'' H Weight: 33 LBS
