Digital multimeter are measuring instrument that can measure quantity such as voltage, current and resistance.
The measured values are shown on a digital display, which allow it to be read easily and directly, even by first time user.
It's Convenient in operation, accurate reading, complete function, and small in size which makes it easy to carry. It uses battery as power handheld large screen LCD multimeter. Specification: Dc voltage: 200mV-1000V, Ac voltage 200mv-760v, DC current: 20mA-20A, Alternating current:20mA-20A, resistance: 200amp-200amp. It has auto off function and auto zero functions.
Large LCD display with high accuracy
This product can measure DC/AC Current, Voltage, Resistance, Capacitance, hFE, and Diode.
It has Low battery indication, Overload indication, and Auto power off function.
There is a stand on the back, which can adjust the working angle, the reading is more convenient and the efficiency is higher
Model: DT9205A
DC Voltage: 200mV/2V/20V/200V/1000V
AC Voltage: 200mV/2V/20V/200V/750V
DC Current: 20mA/200mA/20A
AC Current: 20mA/200mA/20A
Resistance: 200/2K/20K/200K/2M/20M/200M
Capacitance: 200uF/2uF/200nF/20nF
Fuse Protection: 250V / 0.2A
Operating Temperature: -20 & deg;C to 400 & deg;C
Power supply: Requires 9V (Included)
Size: 31.5X91X189m

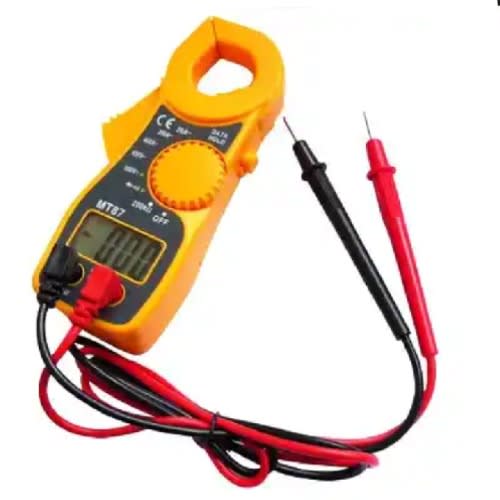

This clamp meter allows properties of the electrical current test, like measure AC current, AC/DC voltage , resistance, capacitance,temperature, frequency,diode and circuit, etc.- It is designed according to IEC10101 and IEC10102032 concerning safety requirements.- Use for measure AC current, AC/DC voltage , resistance, capacitance,temperature, frequency,diode and circuit, etc.- When measure AC voltage, it can measure the voltage's frequency.- Continuity test, can test the circuit to be on or off.- With a LCD display to show data.- Data can be hold
Display: 1999 countsDCV: 1000V & plusmn;ACV: 750V & plusmn;1.0%ACA: 20/200/1000A & plusmn;2.0%Resistance: 200/2000 & Omega; & plusmn;1.0%Diode testPower: Battery 6F22 (9V) x 1Size: 250mm x 99mm x 43DC Voltage: 1000V & plusmn;(1.0%+2)AC Voltage: 750V & plusmn;(1.0%+5)AC Current: 20A/200A & plusmn;(2.0%+5) 1000A & plusmn;(2.0%+7)Resistance: 200?/2000? & plusmn;(1.0%+3)
UT200A is a stable, secure, and reliable 3 1/2 Digital Clamp Meter. Full mechanical and electrical circuit design LSI double integral A / D converter change as the core, full scale overload protection circuit, independent. The special design makes it the superior performance of the dedicated electric Instrumentation. Clamp can be used to measure AC and DC voltage, AC Current, resistance, diode, the circuit off and so on.
Specifications:
Display Type: Digital Only
Measuring Current Range: 2A/20A/200A
Measuring Voltage Range: 600V
Measuring Resistance Range:20K & Omega;
Operating Temperature:0~50C
Dimensions:208mm X 76mm X30
Name: UT 200 Digital clamp meter
AC Current (A): 2A/20A/200A
AC Voltage (V):600V
DC Voltage (V):600V\
Resistance ( & Omega;): 20K & Omega;
Input Impedance for DCV: Around 10M & Omega;
Power:9V Battery(6F22)
LCD Size: 35.6mm *18mm
. MAX/MIN/REL modes
2. RS-232 and USB interface
3. Analog bar graph
4. True RMS5. Peak hold
Specifications
RangeBest AccuracyModel UT61EDC Voltage (V) 220mV/2.2V/22V/220V/1000V & plusmn;(0.1%+2)AC Voltage (V) 220mV/2.2V/22V/220V/750V & plusmn;(0.8%+10)DC Current (A) 200 & mu;A/2200 & mu;A/22mA/220mA/2.2A/10A & plusmn;(0.5%+10)AC Current (A) 200 & mu;A/2200 & mu;A/22mA/220mA/2.2A/10A & plusmn;(0.8%+10)FeaturesDisplay Count 22000Auto Range True RMS Analog Bar Graph 46Input Protection Input Impedance for DCV Around 10M & Omega; General CharacteristicsPower 9V Battery (6F22) (not included)RS-232 Interface Cable,PC Software CDStandard Individual Packing Gift Box, English Manual
UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance, and automatic measurements.
1.Large LCD screen.
2. High-resolution analog pointer display.
3.Full range overload protection.
4.Data hold, REL, Peak value measurement.
5.Low battery indication, backlight, and sleep mode.
6.External interface supports RS-232C and USB cable. UT61 Series can measure AC/DC voltage and current, resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc. UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry
Digital Thermometer with Stainless Steel Probe, -58 degree Fahrenheit to 572degree Fahrenheit (-50 degree Celsius to 300 degree Celsius ) for lab, scientific, industrial, and household uses
Precision of temperature measurement & plusmn; 1 degree Celsius , Temperature resolution plus minus 0.1degree Celsius
(Ease to read) on large LCD screen
(Long stem) of 145 mm (5.7 inch)
(Unit switch) between degree Fahrenheit and degree Celsius
(Hold )the measured temperature, auto-off after 10 minutes
Digital Thermometers
A digital thermometer is used to verify a smart temperature transmitter under flowing conditions and a successful calibration of the smart temperature transmitter
A large and bright meter with a scale lengthy of 80mm
and its sensitivity of 44 & micro;A at full scale
Excellent 2mV DC resolution factor and expanded resistance
Measurement from 0.2O~20MO
Fuse protection
CE Specifications:
Voltage DC: 0.1/0.5/2.5/10/50/250/1000V
Voltage AC: 10/50/250/1000V
Current DC: 50m/2.5m/25m/0.25A
Resistance: Rx1/Rx10/Rx100/Rx1K/Rx10K?
LI: 150m/1.5m/15m/150mA
dB: 22dB
hFE: 0 ~ 1000
Power: 9V (6F22) / 1.5V(AA) & times;2
Dimensions (W & times;L & times;T): 100 & times;148 & times;35 mm
Weight:280g (with battery)
Product Specifications
Model Name/Number
MS2001
Brand
Mastech
Usage/Application
Industrial
Color
Black
Display Count
Maximum 2000
Packaging Type
Box
Display Type
Digital
Product Description
The Mastech MS2001 is a clamp meter that measures AC/DC voltage, AC current, resistance, and continuity. It has a large LCD screen, can measure currents up to 1000A AC and 2000A DC, and features data hold, auto power off, and low battery indicator. It's compact and easy to use.
Extech Mg325 Cat IV Insulation Tester | True Rms Multimeter
Brand
Extech
Power source
Battery Powered
Style
Compact
Item weight
680 g
Item dimensions L x W x H
10.4 x 5.8 x 22.6 Centimetres
Measurement type
Multimeter
Test Voltages of 250V, 500V, and 1000V
Measure Insulation Resistance to 5.5GOhm (autoranging)
AC Voltage measurement from 30 to 600V
Polarization Index measurement (PI)
Dielectric Absorption Ratio measurement (DAR)
Omega Engineering 8 Channel Handheld Thermocouple Thermometer - Data Logger
The portable OM-HL-EH-TC logger is an eight-channel handheld thermometer/data logger with a large LCD display, which can take all 8 types of thermocouple inputs. This user friendly data logger is powered by an internal battery and capable of sampling, processing and displaying measurements without being connected to a computer.
With the high resolution and fast analog to digital converter (ADC), the OM-HL-EH-TC logger meet majority of data logging requirements in most industrial applications, 86000 data points each channel, real-time data monitoring & recording, sampling time 1 sec with all 8 channels on, logging interval sets from 2 secs to 24 hrs comes standard.
By using the professional OM-HL Logpro software, this data logger can save the 8-channels temperature measuring data, along with the time information (year, month, date, minute, second) into the computer and can download to Excel, PDF, and JPG formats. The end user can easily make any data or graphic analysis if needed.
OM-HL-EH-TC Operating Instruction SpecificationsBattery: DC 9V batteryPower Adapter: Optional (See details in Accessories)Usage Type: Handheld or DesktopProduct Features: Professional OM-HL analysis software is simple to use, data multiple protection, professional cold chain compensation, automatic detection of break-evenDisplay: LCD Double Row DisplayKeys: On/Off button, screen light control, & ordm;C/ & ordm;F switching, LOG, TYPE, HOLD MAX, and MINMeasurement Range: -200 to 1370 & ordm;C (-328 to 2498 & ordm;F)Accuracy: & plusmn;0.8 & ordm;C & plusmn;0.2% ReadingMemory Capacity: 86000 readings each channelSampling Rate: 1 secLogging Interval: 2 secs to 24 hoursBattery Life: 4 months(60s sampling 300s Logging as Standard)Sensors: Support eight types of thermocouple sensor K, J, E, T, R, S, N, B
OM-HL-EH-TC Software Setup Work Environment: 0 to 80% RH/ 0 to 50 & ordm;CLCD Size: 68 x 35 mm (2.67 x 1.37")Dimensions: 162 x 95 x 35 mm (6.37 x 3.74 x 1.37")Packing Size: 202 x 165 x 58 mm (7.95 x 6.49 x 2.28")Weight: 290 g (10.2 oz)Resolution: 0.1 & ordm;CCompatible OS: WINXP, WIN7/8/10Connection: USBNumber of Temperature Channels: 8Certifications: CE, ROHS, NIST Calibration Report(Optional)
Logpro Recorder Analysis SoftwareOM-HL Logpro Software is comprehensive data analysis software designed to log attribute settings, download logger data efficiently, graphically analyze data, and export the data to Excel/PDF/BMP, and other formats.
Support 8 Types Thermocouple: K, J, E, T, R, S, N, B Each Channel Store Up to 86000 Data Points NIST Traceable Calibration Report Available in -CAL models only Large LCD Display 8 Channels, Switchable & deg;C or & deg;F
