UNI-T UTD2102CEX is a multi-functional, high-performance oscilloscope that is easy to use, has top-of-the-line technical specifications, and a perfect combination of many functionalities that can
help users quickly complete testings. The
UTD2102CEX can be used widely for communications equipment, semiconductors, computers, aerospace defense,
instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R & D,
education, and many applications. Any quality problem, you can return the product without any reason.
WHY CHOOSE UNI-T?
Uni-Trend Technology(UNI-T) is one of the leading Test and Measurement solutions provider since 1988.
With R&D centers in lots of regions, Uni-Trend is capable of manufacturing innovative, reliable, high quality, safe to use, and user-friendly T&M products.
For all products, UNI-T provides professional technical support services and make you start quickly.
Parameter:
Model: UTD2102CEX
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1GS/s
Rise Time: ≤3.5ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity (V/div): 1mV/div~20V/div
Timebase Range (s/div): 2ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Mode: Edge, Pulse, Video, Slope, Alternate
Interface: USB, OTG
Power: 100-240VAC, 45-440Hz
Display: 7" TFT LCD screen
Net Weight: 4.85 lbs
Dimensions (W×H×D): 12.0 x 4.4 x 3.7 inches

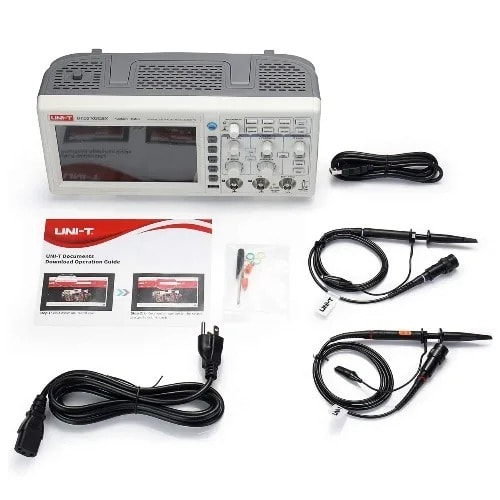

Package List:
2 x Probe(1x, 10x switchable)
1 x Power Cord
1 x USB Cable
1 x PC Software CD
