Feature:
1. LCD display measurement result and conditions directly
2. Selective vibration characteristic
3. Using vibration sensor make it more accurate to measure

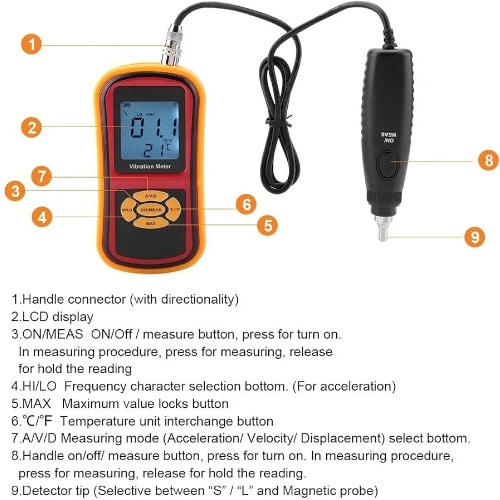

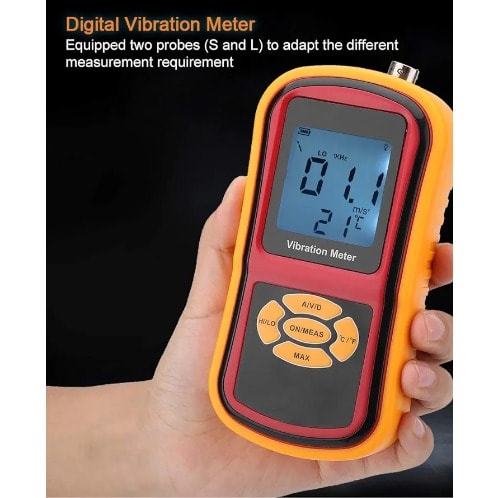

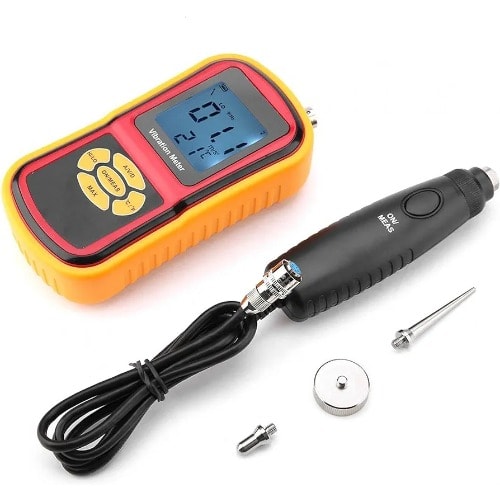

4. Equipped two probes (S and L) to adapt the different measurement requirement
5. Low battery indication, auto turn off function, LCD back light function, maximum value hold function, temperature unit C¡ã/F¡ãselection.

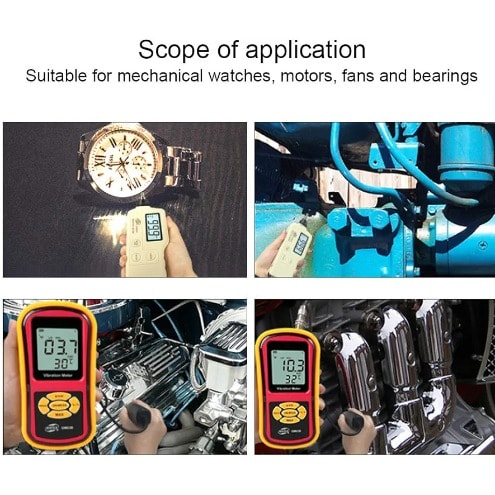

6. Suitable for mechanical watches, motors, fans and bearings
Specification:
Condition: 100% Brand New
Model: GM63B
Technical parameter
Technical specification
Vibration pickup
Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration
0.1-199.9m/s
Measurement range of velocity
0.1-199.9mm/s rms
Measurement range of displacement
0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2
Measurement accuracy
¡À5%¡À2digits
Measurement frequency range of acceleration
10Hz-1KHz (LO) 1KHz-15KHz (HI)
Measurement frequency range of velocity
10Hz-1KHz (LO)
Measurement frequency range of displacement
10Hz-1KHz (LO)
Displays update cycle
1 seconds
LCD display
3 1/2 digits display
Single output
AC output 2 V peak (display full scale) Load impedance 10K¦¸ or more earphones can be connected
