LM2596 DC-DC Adjustable Step-Down Power Supply Module With Voltmeter

₦ 4,455.00 ₦ 4,500.00 -1%

5 1 Reviews

Product SKU: RENG566548

Brand: Arduino

Quantity

In Stock

Product Highlights

Package Includes:

1 X LM2596S DC-DC Adjustable Step-Down Power Supply Module With Voltmeter

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Brand	Arduino

The LM2596 DC-DC Adjustable Step-Down Power Supply Module with Voltmeter is a DC-DC Step-down Adjustable Power Supply Module that is based on monolithic integrated circuit LM2596, ideally suited for easy and convenient design of a step−down switching regulator (buck converter). It is capable of driving a 3.0A load with excellent line and load regulation. This device is available in adjustable output version and it is internally compensated to minimize the number of external components to simplify the power supply design.

SPECIFICATION:

Name: LM2596 DC-DC Adjustable Step-Down Power Supply Module With Voltmeter

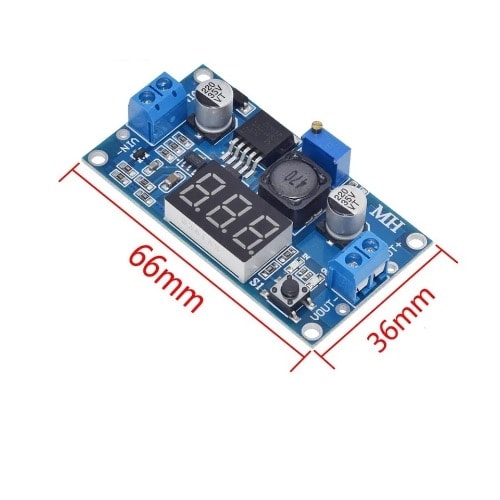

•Cutting Size: 66mm x 35mm

•Input Voltage: DC 4.0~40V

•Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)

•Output Current: 2A(normal and stable), 3A Max. (heat sink required)

•Ripple Frequency: About 150Khz

•Ripple Peak: About 100mV

•Display Color: Red

•Voltage Meter Error: ±0.1V

•Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)

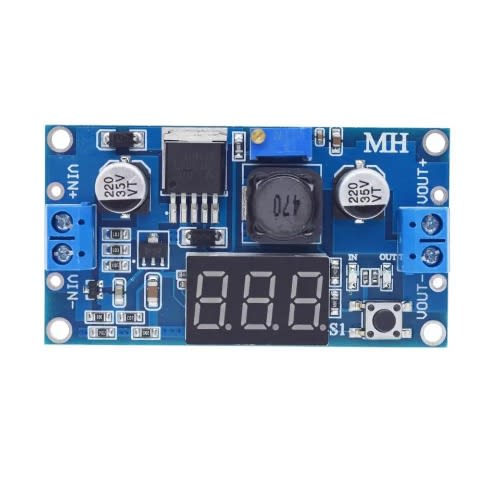

•IN+: Input Positive

•IN-: Input Negative

•Out+: Output Positive

•Out-: Output Negative.

1. LM2596S DC-DC Adjustable Step-Up/Step-Down Power Supply Module with the voltmeter shows voltage meter error ± 0.1V, the range 0-40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage of 4V and above)

2. Touch the key to switch measuring input or output voltage, and has a light show which is being measured voltages

3. Power off memory function, show that road after power voltage values measured for the last time

4. Press the touch button for 3 seconds to turn off LED display, touch the button again to turn on the LED display

5. The band terminals, no iron can also be easy to use, and retention wire connection point

6. Input voltage 4.0-40V (input voltage to the output voltage must be higher than 1.5v.)

7. The adjustable output voltage range of 1.25V-37V continuously adjustable (input voltage must be higher than the output voltage to a high of about 1.5V)

8. The maximum output current up to 3A (heat sink required), normal and stable operating current of 2A

9. the internal oscillation frequency 150KHz, belonging to the second generation of switching voltage regulator, low power consumption, high efficiency
