Product Description:
This thermostart has two mode settings :Cooling and heating modes.
It has provision for you to set aximum/minimum upper limit temperatures according to your choice.
When calibrated, it automatically starts controlling cooling or heating based on your calibrations.
Temperature calibration is done as required by the user.
How to use:
Press the SET key once, the display temperature flashes,
Then and press "+"or"-" to SET the required temperature.

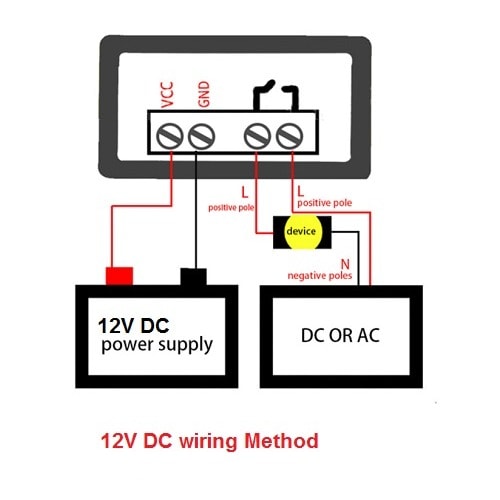

The thermostat output is 10A relay, to meet a variety of high power load,
use the thermostart to control a contactor or relay that will drive the
high power load.
How to reset:
In the shutdown state, press "+" and" -" buttons at the same time, and then turn on the machine. All the above parameters are restored to the factory Settings
High Control precision 0.1 centigrade
This thermostat Can be used to control domestic freezer, water tanks, refrigerator,
industrial chiller, steamer, incubators, kiln, industrial equipment, and another temperature-controlled system.
Specifications:
Power Supply:12V DC
Temperature Control Range:-55°-120°
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Measurement accuracy: ±0.1°C
Control accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Output: Relay Contact Capacity 10A
Environmental requirements: -10-60°C , humidity 20%-85%RH
Dimension:79mm *43mm*26mm
Cutting Size:73mm*39mm
Sensor wire: 1.3 meter
Package contains
I x 12V DC Thermostart
