Specifications:
Over charge detection voltage: 4.28 + 0.05 V
Over charging voltage: 4.08v plus/minus 0.1v
Over discharge voltage: 2.55v plus/minus 0.08v
Over charge detection delay time 0.1s
Balanced current: 60 plus/minus 5 mA
Working current: 30A
Over current: 75 plus/minus 5A
Short circuit protection function: there is, disconnect the load can be self recovery.
Size:56*45*3mm
Main function:

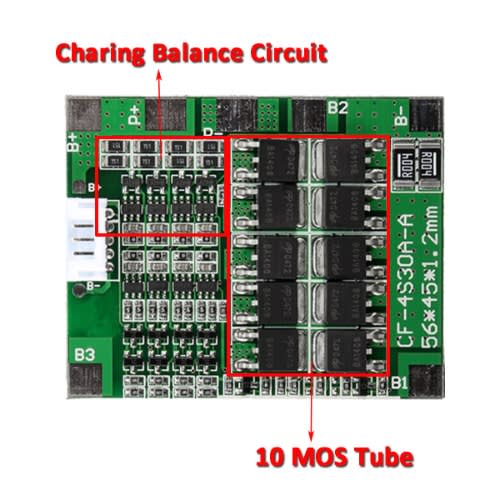

Over charge protection, over discharge protection function, short circuit protection function, over current protection function, balance.
Interface definition:
Charging port of the plate and the discharge port is the same, both positive and B- connecting battery, P- charging port and port on the negative electrode; B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm; The battery charging detection interface with DC output in the form of needle. Do the same mouth when the N- is not wiring.
