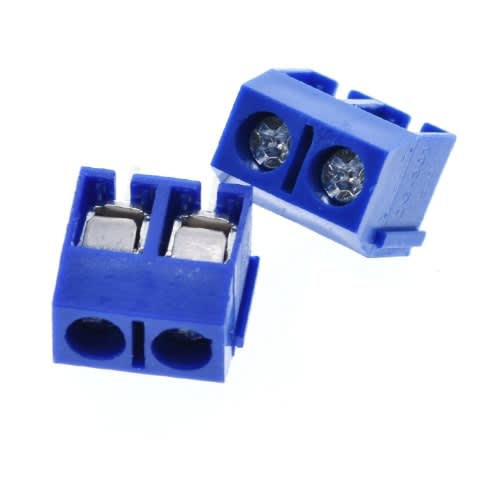

This 2 Pin Wire to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 2.54mm so that this connector can be mounted easily on general purpose PCBs
Parameter | Value |
Max Current Rating | 10A |
Max Voltage Rating | 250V |
Insulation Resistance | > 1000M ohms at 500V DC |
Dielectric Strength | >2 KV |
Moulded Material | Engineering Thermoplastic |
Terminal | Solid Brass alloy - Tinned |
Pitch | 5.00mm |
Screw | MS(Zinc Plated) |
Wire size | 0.5-2.5 mm |
Wire Protector | Copper alloy |
Screw Size | M3 |
Max. torque for terminal Screws | 0.4NM |
