Weight 0.20 kg

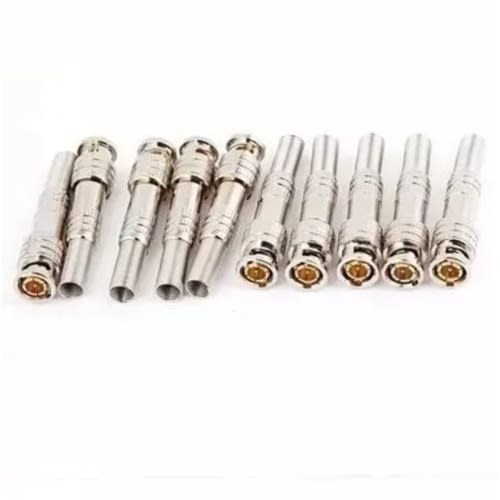

The BNC connector is used to connect the CCTV camera to the Digital Video Recorder (DVR) via RG59 cable. It is also known as screw-on BNC connector, as it has a screw terminal where the copper core of the RG59 cable is attached to.
The BNC connector features two bayonet lugs on the female connector; mating is fully achieved with a quarter turn of the coupling nut. It uses an outer conductor with slots and some plastic dielectric on each gender connector. This dielectric causes increasing losses at higher frequencies.
The BNC coax connector is one of the most widely used RF connectors today. It is very easy and convenient to use, and offers a very high level of performance. The BNC connector is used on test equipment for everything from oscilloscopes to audio generators, and power meters to function generators.
The BNC connector is used for the transmission of radio frequency signals, including the transmission of analog or digital video signals, antenna connections for ham radio equipment and the connection of avionics and other electronic test equipment.
BNC terminator absorbs the electrical energy of the signal as it reaches the ends of cable and avoids reflection of signals.
A BNC connector connects the analog video components from the camera to a TV monitor or DVR. It snaps firmly into place, providing for a quality and secure connection.
The BNC connector is used to connect the CCTV camera to the Digital Video Recorder (DVR) via RG59 cable. It is also known as screw-on BNC connector, as it has a screw terminal where the copper core of the RG59 cable is attached to.
