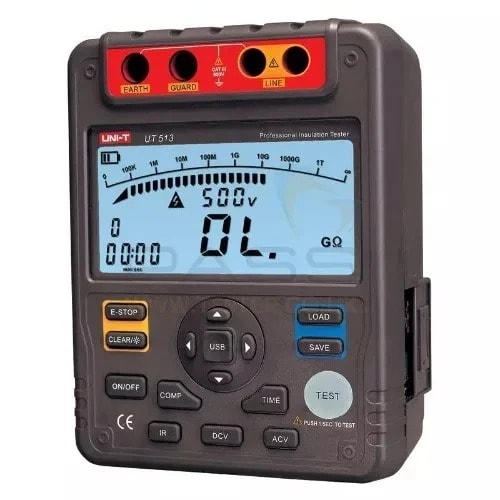

UNI-T UT513 Insulation Resistance Tester Details
Designed for use in HV work, UNI-T's UT513 can test insulation resistance across a huge range from 500kΩ to 10GΩ.
The meter has fully selectable testing voltages of 100V, 250V, 500V, 1000V, 1500V, 1500V, 2500V and 5000V and is autoranging to make testing selections significantly easier. Generic voltage tests can also be performed up to 1000V for DC voltage and 750V for AC voltage.
Measurements of insulation resistance can be performed either continuously or can be carried out over a set period of time between 00:10 and 15:00 (minutes). Polarisation index (PI) measurements are also possible by using this unit.
The UT513 comes with limited datalogging capabilites and can store up to 18 readings on its built in memory.
UNI-T UT513 Insulation Resistance Tester Key Features
Measure insulation resistance from 500kΩ to 10GΩ
Selectable test voltage - 100V, 250V, 500V, 1000V, 1500V, 1500V, 2500V and 5000V
DC voltage measurements to 1000V
AC voltage measurements to 750V
Autoranging
Datalogging - stores up to 18 records with easy recall
Sleep mode conserves battery life when left idle
Polarisation index and dielectric absorption ratio measurements
Timer function
Comparison function
Backlight for use in poor lighting conditions
Overrange and high voltage warnings
USB connectivity
Analogue bar graph and digital display
What's Included?
UNI-T UT513 Insulation Resistance Tester
Test Lead + Alligator Clip (One Plug)
Two Plug Test Lead + Alligator Clip
Batteries
English Manual
