Description:
Features:
100% brand new and high quality
With overload alarm function, reset energy function, power alarm threshold preset function, etc.
The blue backlight can be turned on/off manually
Store energy data can be reset to 0 when powered goes off

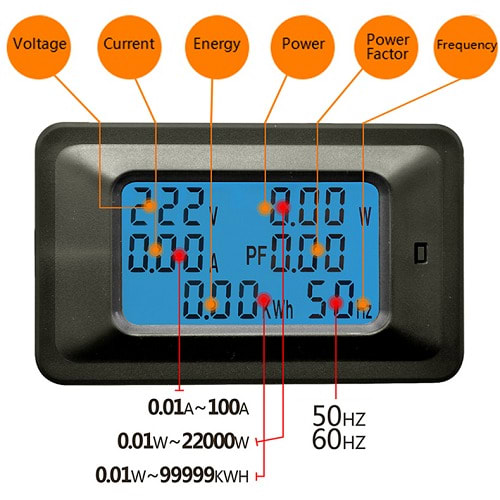

Display format:
1.Power: test range: 0-22kW
Within 1kW, the display format is 0.0-999.9W;
Within 1kW-10kW, the display format is1000-9999W;
10kW and above, the display format is 0.1-22.0kW
2.Energy: test range: 0-9999kWh
Within 10kWh, the display format is 0-9999Wh
10kW and above, the display format is 10-9999kWh
3.Voltage: test range: 80-260V
Display format: 80-260V
4.Current: test range: 0-100A
Display format: 0.00-99.99A
Color: Black

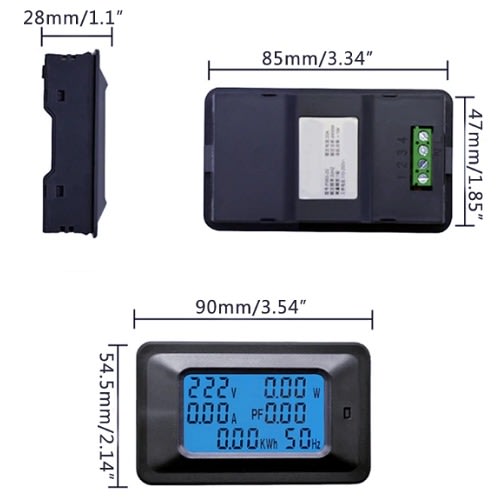

Size: Approx. 90x54.5x28mm/3.54x2.15x1.1"
Net Weight: 94g
Note:
This instrument is only suitable for pure AC 50Hz or 60Hz commercial power supply. Cannot be used for square wave, inverter output, or modified sine wave. Otherwise, it will damage the instrument and the measurement results will be incorrect.
Package Includes:
1 x LCD Panel AC Meter
1 x AC current transformer
1 x User Manual
