Features:
9 major functions
100A range (with 100A shunt)
Size: 89.6x49.6x24.25mm

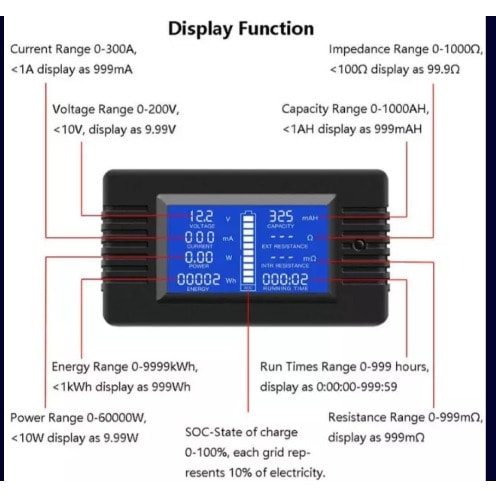

This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.
Specifications:
Voltage
Measure range: 0-200V
Min.Resolution: 0.01V
Start test voltage: 0.05V
Accuracy: 1%
Current
Measure range: 0-100A with 100A shunt
Min.Resolution: 1mA
Start test current: 20mA
Accuracy: 1%
Power-Measure range: 0-20000W
Min.Resolution: 0.01W
Start test power: 0.2W
Accuracy: 1%
Impedance: Impedance=voltage/current
Measure range: 0-1000Ω
Min.Resolution: 0.1Ω
Accuracy: 1%
Internal resistance
Measure range: 0-999mΩ
Min.Resolution: 1mΩ
Accuracy: 1%
Capacity
Measure range-100AH
Package List:

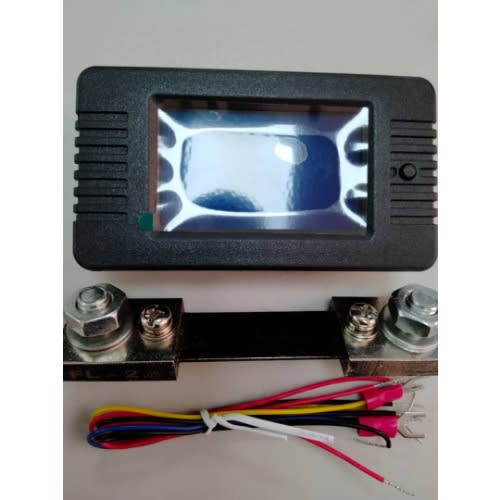

1*PZEM-015 Battery Tester

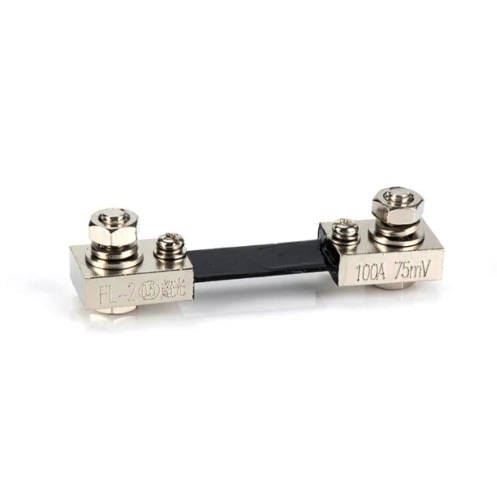

1*100A current shunt
1*English manual
