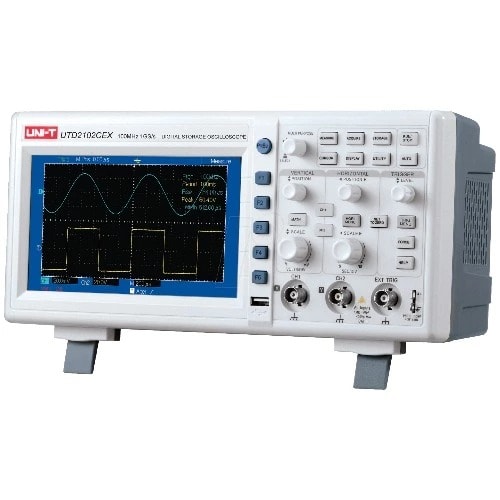

UTD2102CEX Digital Oscilloscope (Dual Channel, 100MHz Bandwidth) Details
The UTD2102CEX is an advanced bench oscilloscope system that can be used to accurately track fluctuations in two different signals over a time period. Input signals are represented on the devices' LCD screen as different waveforms, and by using the various functions on the UTD2102CEX's interface it is possible to adjust these waveforms as necessary. Available functions on the devices' front include scale and position adjustments, trigger menu, zero setting, force, cursor, measure and many others.
Featuring bandwidth of 100MHz and sample rate of 1GS/s, this device also includes memory depth of 25kpts and multiple trigger modes (edge, pulse and alternate). The device's screen is also large (7 inches in size) and is full colour for easy representation of different waveforms and intuitive adjustment of system parameters.
The UTD2101CEX also features the ability to send data via a USB cable to a connected PC. Both a USB cable and a software CD are included as part of this oscilloscopes' package, allowing users to take full advantage of this facility.
This oscilloscope is EN 61010-1 and CAT II 300V compliant.
UNI-T UTD2102CEX Digital Oscilloscope Key Features
Dual channel oscilloscope
100MHz bandwidth
Large 7 inch colour TFT LCD screen
Easy adjustments
Sample rate of 1GS/s
Rise time of ≤7ns
Memory depth of 25kpts
Waveform acquisition rate of ≥2000wfms/s
Vertical sensitivity of 1mV/div-20V/div
Time-based range of 2ns/div - 50s/div
Edge, pulse and alternate trigger types
USB interface
Full List of Products Included
UNI-T UTD2101CEX Digital Oscilloscope
2 x Probes
Power Cord
USB Cable
PC Software CD
