Product Specifications
Description

It is a Auto-range digital Multi-meter using double-integral style A/D transform as the core. It can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc.

The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use.

Features:
Auto Range.
True RMS measurement.
Resistance capacitance frequency file high voltage 550V protection.
Large screen display, the maximum of 6000 words.
Sampling rate: about 3 times per second.

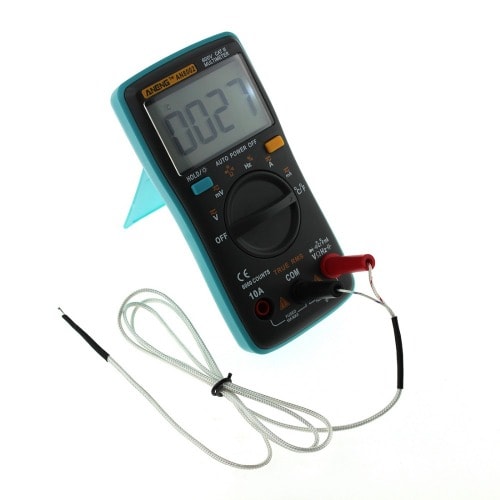

Temperature measuring.
Backlight display.
Data retention.
Polarity automatic recognition.
Low voltage display.
10A large current measurement MA level small current measurement Automatic shutdown.
Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance.
Diode / off measurement, frequency and duty ratio measurement.

Specification:

Function Range Resolution Accuracy MAX.Value Other
DC Voltage 6.000V 0.001V ±(0.5%+3) 1000V Input Resistance:10MΩ
60.00V 0.01V
600.0V 0.1V
1000V 1V
60.00mV 0.01mV 600mV
600.0mV 0.1mV
AC Voltage
6.000V 0.001V ±(1.0%+3) 750V Input Resistance:10MΩ(600mV range, >60MΩ)
Frequency Response: 40Hz-1kHz
60.00V 0.01V
600.0V 0.1V
750V 1V
60.00mV 0.01mV 600mV
600.0mV 0.1mV
DC Current
6.000A 0.001A ±(1.2%+3) 10A MAX.Current:
10A(no more than 15 seconds)
No Voltage input at this mode
Frequency Response(AC):
40Hz-1kHz
10.00A 0.01A
60.00mA 0.01mA 600mA
600.0mA 0.1mA
AC Current
6.000A 0.001A ±(1.5%+3) 10A
10.00A 0.01A
60.00mA 0.01mA 600mA
600.0mA 0.1mA
Resistance 600.0Ω 0.1Ω ±(0.5%+3) 60MΩ No Voltage input at this mode
6.000kΩ 0.001kΩ
60.00kΩ 0.01kΩ
600.0kΩ 0.1kΩ
6.000MΩ 0.001MΩ
60.00MΩ 0.01MΩ ±(1.5%+3)
Capacitance 9.999nF 0.001nF ±(5.0%+20) 9.999mF No Voltage input at this mode
99.99nF 0.01nF ±(2.0%+5)
999.9nF 0.1nF
9.999μF 0.001μF
99.99μF 0.01μF
999.9μF 0.1μF
9.999mF 0.001mF ±(5.0%+5)
Frequency 99.99Hz 0.01Hz ±(0.1%+2) 9.999MHz
999.9Hz 0.1Hz
9.999kHz 0.001kHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
9.999MHz 0.001MHz
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Diode √(DC forward current is 5mA, voltage is 3V) No Voltage input at this mode
Continuity √(no more than 50Ω)

Temperature
-20~1000? 1? ±(2.5%+5) 1000?
-4~1832? 1? 1832?
