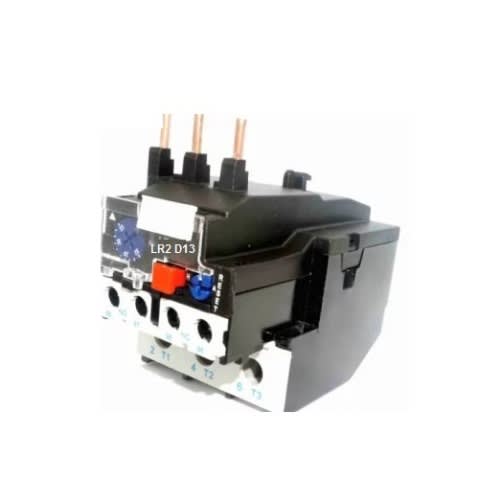

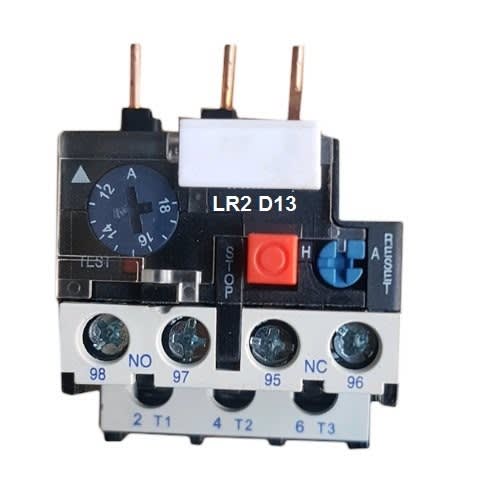

LR2-D13 Thermal Overload Relay
This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,rated current 0.1-96A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in LC1-D13 AC contactor. It is the most advanced thermal relay in the nineties in the world.
Feature
A. Fundamental parameter of the main circuit
- Rated insulation voltage 660V.
- Model: JKLR2 D1322
- Brand: STEL
- Rated working current 17-25A
- The regulator seal of rated setting current and setting.
- Current of the thermal component
- 3 pole
B. Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60Hz.
(d).Use group, rated working voltage ,appoint thermal current and rated current.
