Specifications

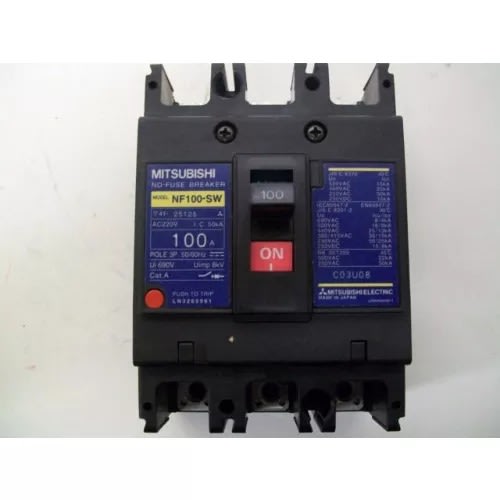

3P 100A
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 100A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 600
[Rated short-circuit breaking capacities (kA)]
IEC 60947-2
EN 60947-2(Icu/Ics)
500VAC:7.5/4
440VAC:10/5
415VAC:10/5
400VAC:10/5
380VAC:10/5
230VAC:30/15
200VAC:30/15
250VDC:7.5/4
[Rated impulse withstand voltage Uimp(kV)] 8
[Current] AC/DC compatible
[Suitabillity for isolation] Compatible
[Reverse connection] Possible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.9
[CE marking] Self-declaration
[CCC recognition] Recognition in process
[Marine use approval] NK, LR ,ABS ,GL
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
