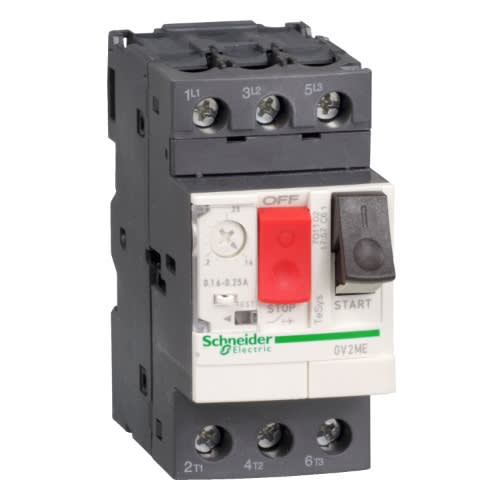

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
SPECIFICATION
Main
- range of product TeSys GV2
- range TeSys Deca
- device short name GV2ME
- product name TeSys GV2, TeSys Deca
- product or component type Motor circuit breaker
- device application Motor protection
- trip unit technology Thermal-magnetic
Complementary
- poles description 3P
- network type AC
- utilisation category AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2
- network frequency 50/60 Hz conforming to IEC 60947-4-1
- fixing mode 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate)
- operating position Any position
- control type Push-button
- [In] rated current 6.3 A
- thermal protection adjustment range 4A…6.3 A
- magnetic tripping current 78 A
- [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ith] conventional free air thermal current 6.3 A conforming to IEC 60947-4-1
- [Uimp] rated impulse withstands voltage 6 kV conforming to IEC 60947-2
- power dissipation per pole 2.5 W
- mechanical durability 100000 cycles
- electrical durability 100000 cycles for AC-3 at 415 V, at 415 V
- maximum operating rate 25 cyc/h
- rated duty Continuous conforming to IEC 60947-4-1
- tightening torque 1.7 N.m on screw clamp terminals
- height 89 mm
- width 45 mm
- depth 78.5 mm
