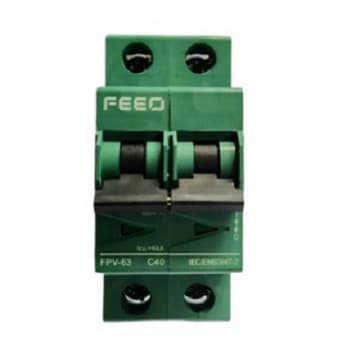

FEEO 2p 40a Mcb Miniature Dc Circuit Breaker
DC circuit breaker Application:
FPV-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
dc circuit breaker Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker4. Safety handle, classic original design, ergonomic
Light Weight40A 2P DC400V/415V max rated currentHigh Breaking CapacityMade of shockproof plastic
DC CIRCUIT BREAKER PARAMETERS:
Item
Dc circuit breaker
Code
FPV-63
Pole
1P,2P,3P,4P
Rated Current(In)
1A,3A,6A,10A,16A,20A,32A,40,50A,63A
Rated Operating Voltage
DC12V-DC1200V
Standard
IEC/EN60947
Breaking Capacity
250V/550V/750/1000V/1200V 6KA; 800V 3KA
Characteristic Curve
B,C,D
Working Temperature
'-5' to +40
Protection Degree
IP20
Installation
35MM DIN RAIL
