75-100mm Outside Micrometer 0.01mm Graduations In Wooden Case

₦ 64,350.00 ₦ 65,000.00 -1%

0 No Reviews

Product SKU: RENG703674

Quantity

In Stock

Product Highlights

DESCRIPTION: 75-100MM OUTSIDE MICROMETER

RANGE: 75-100MM

MEASUREMENT: 0.01 GRADUATIONS

NO PIECES: SINGLE

PACKING: WOODEN CASE

MASS: 489g

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

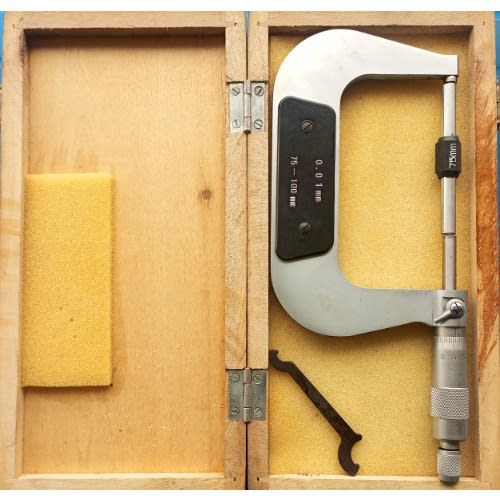

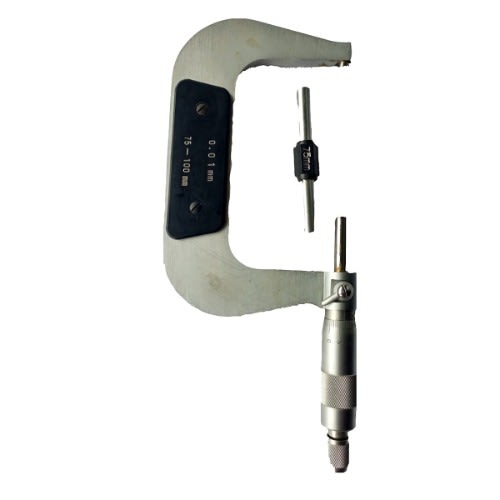

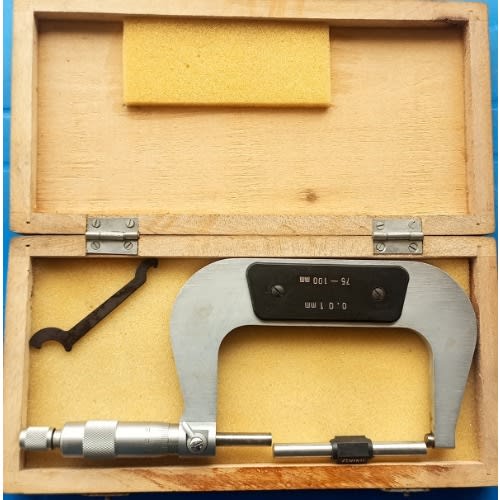

75-100mm Outside Micrometer 0.01mm Graduations in wooden case

75-100mmoutside micrometer 0.01 Graduations, in wooden case is used for measuring the thickness or outside diameter of small parts. They are industry standard measuring tools because of their high accuracy/resolution and ease of use.

This outside micrometer has a ratchet stop and mechanical digit counter. Graduation options of 0.01mm or 0.001mm. Includes standard bar.

Specifications of 75-100mm Outside Micrometer 0.01mm Graduations

Range = 75-100mm
Accuracy = +/- 3µm
Graduation = 0.01mm or 0.001mm (0.001mm reading is obtained with vernier)
Mass = 489g
Flatness = 0.6µm
Parallelism = (2+R/100)µm, R=max range (mm)
Case = includes fitted case.
Measuring faces= Carbide tipped

Parameters of 75-100MM OUTSIDE Micrometer 0.01 Graduations

Type	Outside Micrometer
Range	75-100mm
Brand
Measurement	0.01 Graduations
No Pieces	Single
Packing	Wooden Case
Weight Nett/Gross	/

Reading of The 75-100mm Outside Micrometer 0.01 Graduations

Cylindrical Parts

Contact surfaces of cylindrical part and micrometer are cleaned.
Micrometer is opened slightly larger than cylindrical part.
Anvil is seated squarely on the surface of the cylindrical part.
By moving back and forth around the diameter of the cylindrical part, micrometer is closed slowly.
While closing the micrometer, first contact is felt then rock sideways for finding the position over centre.
Steps are repeated for 4 to 5 times till the perpendicular position are found.

Flat Parts

Contact surfaces of flat part and micrometer are cleaned.
Micrometer is opened slightly larger than flat part.
Anvil is seated squarely on the surface of the flat part.
With the use of ratchet, micrometer is closed slowly until ratchet clicks.
Reading is recorded.
Entire procedure is repeated for few times and then average readings are calculated.
