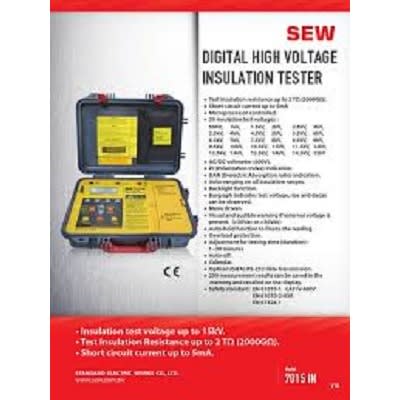

The SEW 7015IN High Voltage Insulation Tester is provided with a guard rail to eliminate surface leakage when testing insulation resistance of assets such as PILC cables. Internal data storage can hold 200 measurements, and the instrument’s optical USB to RS-232 transmission port allows data export to PCs via SEW’s standard CD-supplied software. Standard features of the SEW 7015IN High
Test Insulation Resistance up to 2 TΩ (2000GΩ).
Short-circuit current up to 5mA.
Microprocessor controlled.
30 insulation test voltages:
500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV,
5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV,
10kV, 10.5kV, 11kV, 11.5kV, 12kV, 12.5kV, 13kV,
13.5kV, 14kV, 14.5kV, 15kV.
AC/DC Voltmeter (600V).
PI (Polarization Index) indication.
DAR (Dielectric Absorption ratio) indication.
Auto-ranging on all insulation ranges.
Backlight function.
Menu driven.
Visual and audible warning if external voltage is present. (≥30Vac or ≥30Vdc).
Auto-hold function to freeze the reading.
Overload protection.
Adjustment for testing time (duration): 1~30 minutes.
Auto-off.
Calendar.

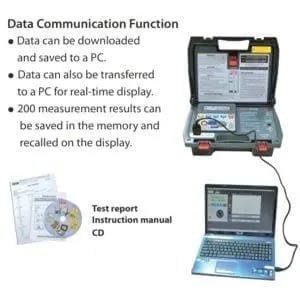

Optical USB to RS-232 data transmission.
200 measurement results can be saved in the memory and recalled on the display.
