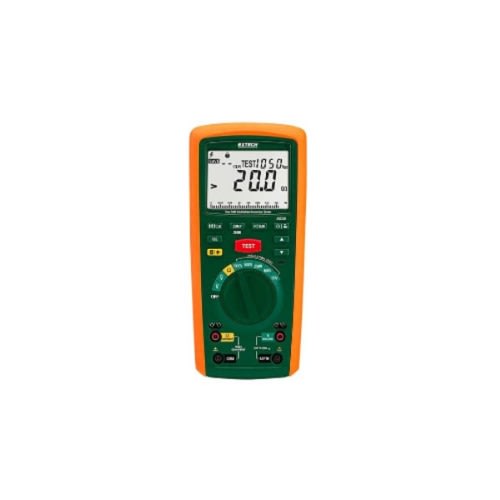

Insulation tester MG320

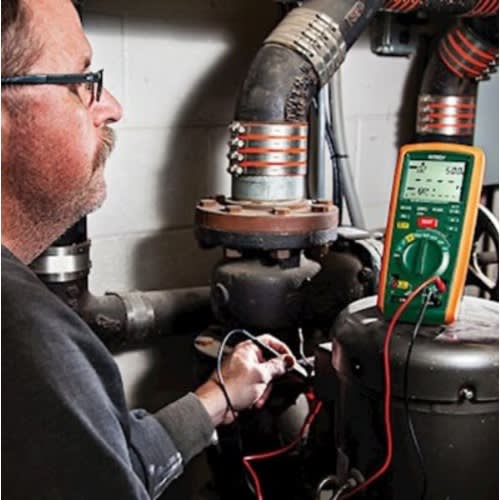

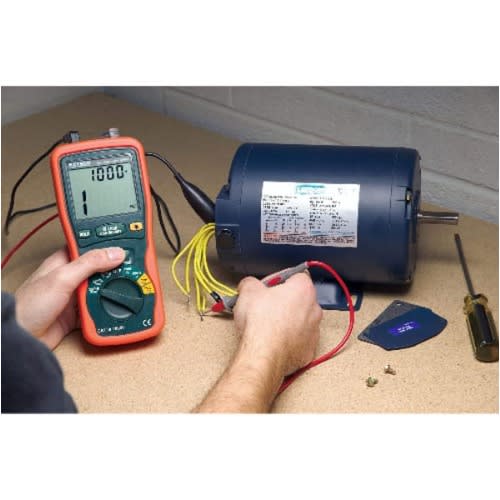

The MG 320 has a robust design for a high stress. The MG320 measures the insulation resistance, the AC/DC-voltage and resistance. The insulation resistance testing will be automatically with 5 test voltages from 50 V to 1000 V carried out. The MG 320 can be up to 99 measurements to save and retrieve. The MG320 is suitable for the measurement of the insulation resistance of electrical equipment such as transformers, motors, cables, switches and devices.
This text is machine translated.
Highlights & Details
- CAT IV 600V
- Insulation tester and Multimeter
Facts
- True RMS AC/DC voltage measurement up to 600 V
- Insulation resistance measurements up to 20 GOhm
- Low-ohm measurement/continuity tests up to 20 kOhm
- Measurements with automatic value range
- Polarisation index (PI) and dieleketrische absorption rate tests (DAR)
- Five (5) voltages for insulation resistance testing (50, 100, 250, 500 and 1000 V)
- Insulation resistance testing with voltage changes in steps of 10% (in the range of 50% to 120%)
- LED alarm lamp for test voltages on the front side
- Eight (8) areas for insulation resistance testing (automatic value ranges)
- Pass/fail Comparator Function
- Automatic discharge at the end of the test
- Display symbols for high voltage
- Contact-less testing lock function
- Manual storage and recall of up to 99 measured values
- Overweight alert
