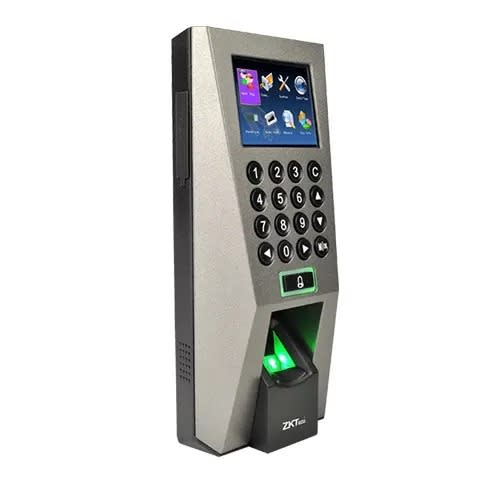

ZKTeco F18 Biometric Access Control and Time Attendance Terminal
F18 is an innovative biometric ngerprint reader for access control application.With high-performance rmware functions and compact design, it has become one of ZKTeco's most popular devices. It is applied with ZKTeco's latest firmware with user-friendly UI and exible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and rmware, the new f18 is able to verify ngerprints with even higher eciency. The device o ers exibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP is also available which enable F18 to be applied in dierent network.
F18 standard with AC push Firmware connect to ZKBio CVAccess, optional standalone Firmware, and also optional TA push Firmware connect to ZKBiotime.
2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional)
3,000
5000(Optional) ID / IC / HID Prox / HID iclass card
100,000
ZK Optical Sensor
ZK Finger V10.0
RS232 / 485*, TCP / IP, USB-host
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Input, Output, SRB
DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
12V DC, 3A
0 °C - 45 °C
20% - 80%
AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5

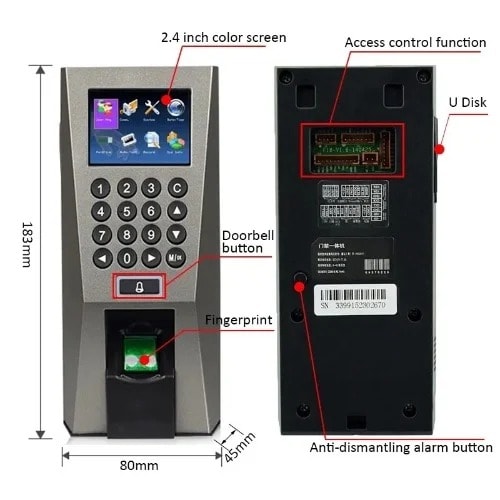

80 × 183 × 42mm (W*D*H)
Features
TFT Color Screen
Full Access Control Features
Slim and Elegant Design
New Firmware
Easy Installation and Connectivity
New Platform
Installation Diagram
