The company supplies include 180KG, 280KG, 320KG, 500KG so many different specifications of the product's tensile strength. With lock status indicators, with unlockdelay and so on features. Compatible include access control system, building intercom control system, fire control system and any access control system. Suitable for installation in fire doors on almost all types of wooden doors, stainless steel doors, steel doors, glass doors frames, the modular designs makes the product more function easily implement the installation, upgrade and maintenance.
RC522 is a 13.56 MHz RFID reader writer module which easy to use and low cost. It can be easily hooked up to Arduino or other microcontroller (e.g. PIC, Atmel or ARM) via SPI. This kit comes with two tags so you can begin prototyping right away.
Useful for making access control for locks, vehicle anti-theft, attendance systems, etc.
The RC522 has full support for Arduino: //playground.arduino.cc/Learning/MFRC522
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
SPI communication (Industry standard)
Sleep current: less than 80uA
Peak current: less than 30mA
Operating Frequency: 13.56MHz
Realand Fingerprint Reader Time Attendance With Battery Backup

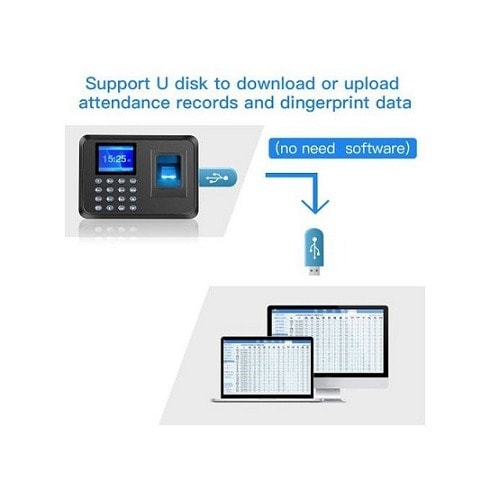

- Advanced processors, quick identification with fast analysis speed- Multi-angle recognition, convenient to use- Energy-saving fingerprint reader with intelligent sensor, can reduce the energy consumption effectively- High-quality material, anti-crash, durable and high-stability- Intelligent update function can implement registered for one time and be used for a whole lifetime, which will relieve you from many troubles- Supports Chinese or English voice prompts with clear sound- Supports USB to download attendance records and fingerprint dataSpecifications:- Identification mode: fingerprint, card, password- TFT: 2.4-inch TFT true color screen - Fingerprint capacity: 2000- Log capacity: 100,000 events- Language: Chinese / English- Voice prompt: available
With Backup Battery
1.Favorable price, great variety of products, attractive design
2.High power efficiency, low lumen attenuation
3.Steady long time working performance, instant start, no flickering, free of lamp failure
4.High shock/vibration resistant, water-proof, good heat dissipation
5.Different kinds of lamp holder and color for your choice
6.easy installation & transportation safety
7.Low power consumption, high intensity
A-l 365 Biometric Time Attendance Machine With Access Control + WIFI And Backup Battery
A-L365 is a cost-effective and compact fingerprint machine with large capacity of fingerprint, card, password and transaction.
A-L365 has both C/S and B/S firmware, and supports web-socket API which makes it suitable for a variety of applications such as school, enterprise, government etc.
A-L365 is a 2.8inch TFT screen Time Attendance & Simple Access Control Terminal. Fingerprints can be easily read no matter dry or wet, making the attendance process more convenient.It has interfaces for third party electric lock and exit button. TCP/IP and WIFI make data management extremely easy.Most importantly, the removable backup battery can eliminate the problem of power-failure.Moreover, A-L365 is a device could support PC Software & Cloud System. We could offer the SDK for your PC Software development, and offer Web Socket for your Cloud System development.
Place your order now for your Realand A-L365 Fingerprint time attendance machine with access control, Battery backup and wifi application enjoy quality product and nationwide order delivery at affordable rate.
Basic Features.
Type:Biometric: Time Recording
Biometric Measurement:Fingerprint
Brand Name: Realand
Model Number: A-L365
Product Name: Realand A-L365 Fingerprint Time Attendance Machine
Display: 2.8 Inch LCD Color Screen
Fingerprint Capacity: 5000
Log Capacity: 100,000
Communication: TCP/IP, WIFI, USB Memory Disk, optional for RS485
Fingerprint Sensor: 500DPI optical sensor
Power Supply Source: Electricity and Battery Backup
Service: Free SDK
Power Supply: DC 12V/1A
Dimension:170*130*32mm
NC Mode- (locked while supplied with power), Error Safe ModeSafety function: built-in voltage surge suppressorMounting type: concelebrate installation inHolding force of approximately 180 kg (LBS)Holding force: Kg / kgVoltage: 12 V DCCurrent: 380-430mAOperating temperature: -10 to 55 degrees Celsius (14 to 131 degrees Celsius)Humidity: 0 to 95%Application:These products are widely applied in the access control system and related applications.Colour:silverMaterial:metalSize:19.1 * 3.5 * 2.2cmPackage Contents:1* magnetic lock1* panel1* set of mounting accessoriesOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Get your HW-03D Magnetic type PIR Motion Sensor
HW-03D wireless PIR Infrared detector is a special home and business PIR Infrared detector with a delicate and modern design (appearance has a patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoid alarm failure.
Technical Parameters:Items ParametersSensor Passive IR sensor with low noiseWorking Voltage DC6V (4pcs AAA 1.5V dry batteries)Static Current & lt;60uAAlarm Current & lt;20mAWorking Temperature 5 & deg;C~45 & deg;CWorking Humidity & le;95% (no fog)Transmitting Frequency 315/433 + 0.5MHzTransmitting Distance No obstacle 80MDetecting Distance 12M maxDetecting Angle Horizontal 110 & deg;, Vertical 60 & deg;
door lock using contactless RFID tech, user tag the card to unlock, more easier to use than magnet cards.
RFID Reader can Read Cards in near field.
The Lock is managed with our handy , easy to manage many locks in one place.
Using the IC card system, reception do not need to go to each lock to add cards, just simple issue a guest card on the front desk, the guest will be able to take it to unlock the elvator, passage door, room door and put in the switch to get the power.
ZKTECO BIOMETRIC T & A +FACE RECOGNITION
ZKTeco is now presenting the uFace401/402 Plus Multi-Biometric T & A and A & C Terminal, which supports 3,000 palm templates, 3,000 face templates, 4,000 fingerprint templates, and 10,000 cards (optional).It is equipped with ZKTeco's latest hardware platform and algorithm like 3-in-1 contactless palm recognition (Palm Shape, Palm Print and Palm Vein), so the terminal can perform bio-authentication with the palm vein, palm print, and the shape of the
Display
4.3-inch Touch Screen
Face Capacity
3,000
Palm Capacity
3,000
Fingerprint Capacity
4,000
Card Capacity
10,000 (optional)
Log Capacity
100,000
Communication
TCP/IP, USB Host, WiFi (optional), 3G (optional)
Standard Functions
Web-server, Work Code, SMS, DST, Record Query, Automatic State Switch, Photo ID, ADMS, Scheduled Bell, T9 Input, 9-digit User ID, Multi-Verification Methods, Advanced Access Control (The ID Card function is optional)
Interfaces of Access Control
3rd-Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal
Wiegand Out
Optional Functions
ID/MF/HID Card, WiFi, 3G, External Bell/Printer, Backup Battery, 485 Reader
Algorithms
ZKFace V12.0 & ZKFinger V10.0 & ZKPalm V12.0
Power Supply
DC 12V/3A
Operating Temperature
0 & deg;C - 45 & deg;C / 32 & deg;F - 113 & deg;F
Operating Humidity
20% - 80%
Dimensions (L*H*D)
193.54 * 165.14 * 111.48 (mm) / 7.620 * 6.502 * 4.389 (in)
This is a touch switch with blue backlight for access control system, when the button on standby condition the backlight is blue, if there are insufficient light you can accurately find the position of the switch, when touch the switch the backlight becomes red then the door open.
Touch out switch
Dimensions: length 86x width 86x 25 (mm)
Input voltage: DC12V
Standard structure: organic glass touch trigger
Electrical performance: 3A@12VDC
Contact output: NONCCOM contact
Durable test: five hundred thousand aging test qualified
Application: apply to all kinds of gate frame
Applicable temperature: -20 ~ +50
Applicable humidity: 95% ~ 0 (relative humidity)
Trigger device: touch
LED Indicator Status:
The circular indicator light is white: power off state
Round indicator light blue: power status
The circular indicator light is green: the state of the power is induced
Product weight: 0.105kg
Package Content:
1 x Door Switch Button
1 x Wiring and Instruction
2 x Screws
2.8-inch LCD screen to display time, date, week, and attendance information Transmission mode of wired network and Wi-Fi 1:N mode accurate and fast fingerprint recognition (recognition duration & lt; 1.5s) Supports Max. 3000
2.8-inch LCD screen to display time, date, week, and attendance information
Transmission mode of wired network and Wi-Fi
1:N mode accurate and fast fingerprint recognition (recognition duration & lt; 1.5s)
Supports Max. 3000 users, Max. 3000 fingerprints, and Max. 10,000 pieces of events records
Supports two ways of attendance authentication mode: authentication by person, authentication by device
Supports the stand-alone operation (supports adding persons, cards, and fingerprints locally)
Supports downloading attendance reports by U-disk
Supports 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules
Supports forming reports automatically
Convenient installation and easy operation
The DS-K1T804MF-1 controller can operate autonomously or in the network mode. The device enables single door or read in/out access control.
LCD Display Standalone Access Control TerminalSupport Access Control and Time Attendance Function, Optical Fingerprint Module3,000 Fingerprints CapacitySupport Wi-Fi & TCP-IP, Stand-alone OperationMultiple Authentication: Card(EM or Miafare-1 Card), Fingerprint, etc
This RFID card is read only and rewritable
It is a Virgin non-encrypted card
Operation Frequency : 125KHz
Standard : EM4100 compatible
Compatible stand ID door access devices or ID reader
Contactless transmission of data and supply energy
Ideal for use in Hotel, ID and access control
With card ID printing
Size : approx. 85x55x0.8mm
Color : White
Quantity : 200
Material : PVC
Operation Temperature : -40C~85C
Waterproof
Note:
Please notice that our RFID cards cannot be compatible with UHF reader and encrypted readers, for example, the reader of following brands: HID, Cobra, APCiK ,Paradox,Radio,Honeywell,etc
Please consult your technician to ensure your reader will support normal (non-encrypted) standard EM4100 125KHz RFID cards
Package includes:
200 x RFID Cards (White)
