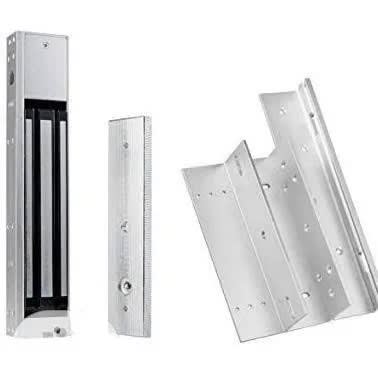

A maglock is an electrified locking device that uses low-voltage power to keep an entrance secure. Also referred to as an electromagnetic lock or magnetic lock, they consist of an electromagnet and an armature plate.
Benefits. Strong security – Mag locks can withstand up to 1200 pounds of force, providing great protection for secure areas. Double-sided security – Mag locks can control access on both sides of the door, unlike electric strikes which only secure one side.
Because mag locks by design require a constant supply of electricity to remain locked, mag locks are fail-safe only — they do not function to keep the door locked from either side when the power is out
A maglock of any description will require connection to a permanent power source. This will generally require power running through a wall to the maglock.
NC mode - (locked while supplied with power), fail safe mode Suitable for : wooden door, glass door, metal door, fireproof door, etc
Safety function : built-in voltage spike suppressor
Material : stainless steel
Anti-residual magnesium designed
Holding force about 280kg (600lbs)
Technical Information:
Operating Mode : NC (locked while supplied with power), fail safe mode
Holding Force : 280kg (600lbs)
Voltage : DC 12V
Current : 480mA
Dimensions (Faceplate) : - Approx. 7-1/8" (W) x 1-1/2" (H) x 1/2" (D) inch
Dimensions (Main body) : - Approx. 9-7/8" (W) x 1-7/8" (H) x 1-1/8" (D) inch
