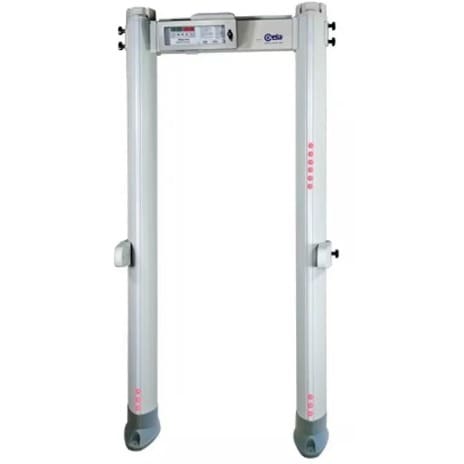

CEIA PMD2 Plus Multi-Zone Walk Through Metal Detector - 204 X 110 cm

₦ 8,514,000.00 ₦ 8,600,000.00 -1%

0 No Reviews

Product SKU: RENG479310

Quantity

In Stock

Product Highlights

The CEIA PMD2 Plus Multi-Zone Walk Through Metal Detector will detect firearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat,

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

PMD2 Plus

Enhanced Walk-Through Multi-Zone Metal Detector

The CEIA PMD2 Plus Multi-Zone Walk Through Metal Detector will detect firearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. It has up to 50 built-in Security Programs, 30 International Standards and 20 Customizable Levels.

Dimension: 204 X 110 cm

User scan choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.

One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.

Strict requirements and detection needs call for security checkpoints to perform efficiently even under very challenging conditions. The PMD2 Plus detects firearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition.

Most powerful and versatile security features

Up to 50 built-in Security Programs:

Up to 30 International Standards
Up to 20 Customizable Levels

Setting the Security Levels could not be easier and more versatile than in the PMD2 Plus.

Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.

Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc. and security level selection.

One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.

Any security standard can be enhanced with selectable random alarm probability.

Detection of all metallic threat items

Capability to detect the full range of metal weapon threats even within body cavities
Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
Guaranteed coverage for all orientations and locations, never in need of calibration
Met-Identity technology for Identification of Threat Composition

High discrimination & throughput

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
Better Discrimination = Shorter Lines and/or Less Staffing

The PMD2 Plus has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Immunity to external interferences

Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.

New Certified IP66 Control Unit

New integrated design
Total compatibility with IP20 (plastic) and IP65 (stainless steel) control units
Robust structure through the use of high-performance polymers for the construction of housing
Waterproof / Dustproof: IP66 compliant (IEC 60529)
Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
Display made with specific polymer to improve the visibility of the LEDs by increasing the defi nition and clarity

Unique alarm signalling

High visibility of the control unit and the zone indication independent from the operator position and the installation environment
Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
10 Alarm Volume Levels
Very High Precision Transit Counter

Accurate signaling is essential for best operation and flow management. The detector provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.

Rapid installation

One touch guided automatic installation (OTS)
Innovative function assisting the installation through an automatic step-by-step procedure
Continuous self-diagnostics assures monitored performance reliability

Integrated Web-Server & Logger

Monitor the status of Metal Detector network in real time
Centralized Setting of the Metal Detectors’ working parameters
Transits flow monitoring
Report on number of people screened and alarm rates automatically
Detailed reporting of the transits data and the Security Device configuration data
Remotely control and verify the security level
No server or specific client software required, only a web browser
Zero configuration network for simple setup
2 x Ethernet 100base-TX

Gate structure

State-of-the-art, robust and washable panels or compact elliptical columns
Protected against aging, weather and wear

Operational features

High discrimination and transit flow rates five or more times greater than other metal detection systems
Quick reset time as short as 0.2 seconds for high throughput rate
Very high detection speed (up to 15 m/sec.)
Built-in operational functional verification
One-touch key reading of inbound, outbound and Security Level Data

Quality

Continuous self diagnostic system
Proven reliability
No periodic re-calibration and preventive maintenance required
No scheduled maintenance
Fully digital design

Alarm signaling

Multi-zone display bar for “height on person” localization
4 light bars with selectable entry/exit and pacing indication
Green and red metering signals proportional to the mass of the detected target
10 selectable continuous and pulsed tone plus 34 special tones
10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signaling

Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
60 distinct zones (20 vertical x 3 lateral) entry and exit side

Programming

Up to 50 built-in Security Programs
Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
Security level: International Standard (IS) command / Chip card
Local by Control Unit alphanumeric display and keyboard
Programming and chip card access protected by user and super-user passwords

Environmental data

Power Supply : 100…277V~ }10%, 47…63Hz, 40 VA typical consumption
Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
Storage temperature: -37°C to +70°C
Relative humidity: 0 to 95% (without condensation)

Installation data

Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
Automatic Installation function (OTS)

Certification and compliance

Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
Compliant with all Airport Security Standards worldwide
Compliant with applicable International Standards for electrical safety and EMC

Comprehensive support

CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site.
