Features:
free trouble codes and turn off the MIL ("Check Engine" light) to get
the maximum number of answers
remove spaces from ECU responses (for data transfer)
store a unique identifier in EEPROM
it almost supports OBD-II protocols.
Bluetooth connection, no batteries, cables, or switches.
retrieve error codes (DTCs) and clearly lit.
Description:
read diagnostic trouble codes, generic and manufacturer specific, and their meaning (over 3000 generic coded definitions in the database).
Set the CAN mask and filter with a command
easily between variable and fixed CAN
send message lengths CAN remotely frame (RTRs)
Display current sensor data, including:
engine speed
calculated load value
coolant temperature
Fuel System Status
Vehicle Speed
Short Term Fuel trim
Long-term fuel trim
intake manifold pressure
Timing advance
intake air temperature
air flow rate
Absolute throttle position
oxygen sensor voltages / associated short term
fuel system status
fuel pressure
many others ...
supports OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11-bit ID, 500 Kbaud)
ISO15765-4 CAN (29-bit ID, 500 Kbaud)
ISO15765-4 CAN (11-bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
specification:

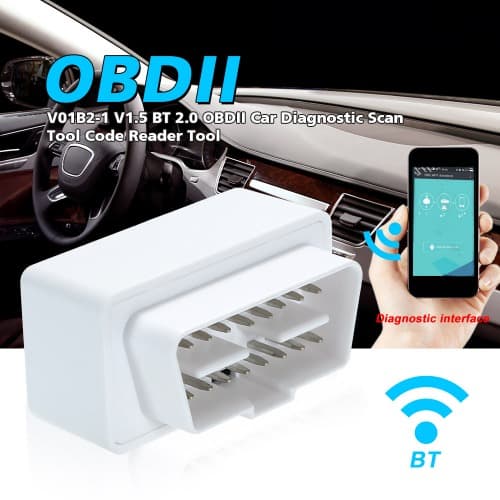

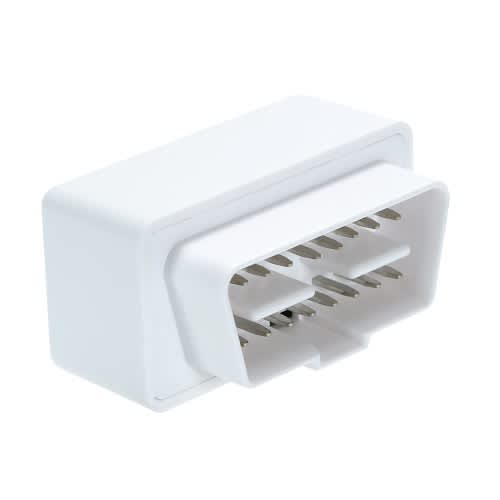

model: V01L2-1
material: plastic, electronic components
color: white, black
communication: Bluetooth 2.0
System: Android, Windows

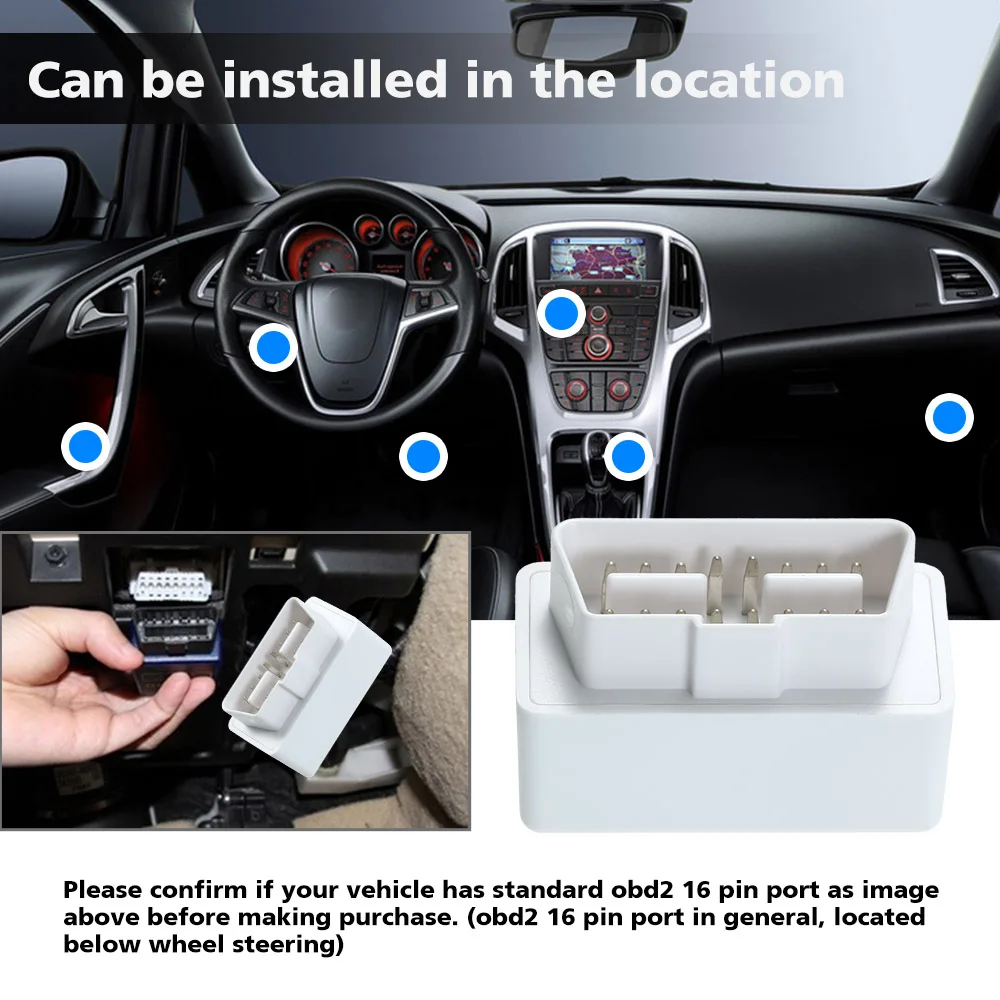

interface: 16pin OBDII standard interface
operating voltage: 9V ~ 16V
working current: 35mA
Standby Current: 25mA
working temperature: -40 ° ~ 85 °
working humidity: <60%
size: 43 * 25 * 30mm
package size: 66 * 26 * 100mm
