Product Specifications
Description

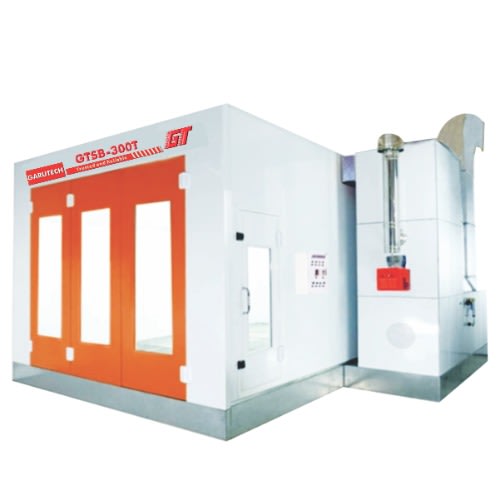

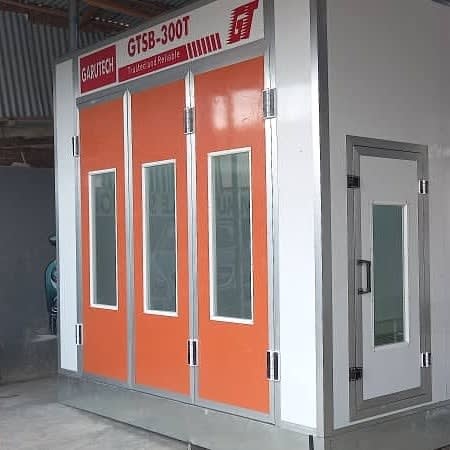

Spraybooth
--Wall panel: sandwich style, δ=50mm, polystyrene. rock wool is optional.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover.
1pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.-One 7.5kw intake fan
--4m straight exhaust ducts, one 90° bend, and one 60° bend.,4m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.
--Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--2 pcs of floor filter and 1 pcs of outlet filter.--Upper light: 10 sets, 4*40w per set.
--Control box: components made in china, overload, overheat,
phase-lacking protection, straight driven motor.
--Automatically stop when preset time is up.--Constant temperature spraying.

Technical Specifications
External size(m) 7.0x5.3x3.5
Internal size(m) 6.9x3.9x2.7
Door width (m) 3.0
Door height (m) 2.66
Air flow (m3/h) 24000
Inside on-load air speed(m/s) 0.25-0.35
Power (kw) 9.5
Vehicle suited Saloon car

SPECIFICATIONS

Semi-Down Draft: Air enter booth cabin through top front filtered plenum, and exhausted from the rear centered exhaust plenum.

GL2 CONFIGURATION
Name specification optional
1.Body
Panel Sandwhich style,δ=50mm.polystyrene rock wool
Basement Steel structure,3 rows vein board and 2 rows of grids full grides
Ramp 2 pcs of vein board
emergency door 1 pcs emergency door with pressure lock
Front door 3pcs of front door whitout aluminum side cover
2. Air system
frame steel,powder coated
Intake fan 7.5kw
Exhaust fan No
Intake duct No
Exhaust duct 4m straight duct,one 90 bend,and one 60bend
Chimney duct 4m straight chimney and 2 small bends
Spray/baking Transition damper automatically air controled
burner RIELLO/G20 BAIRUI
heat exchanger stainless steel,circular heating,chimney at back
3.Filtration system
Roof filter 4pcs of filter,mounted above support frame,which is made of steeland powder coated
Floor filter 2 pcs
Air mouth filter 1 pcs M style intake fan
4.Light system
Upper light 10set.4*40w per set
Side light No
5.Electric sysytem
Control panel components made in china ,overload,overheat,phase-lacking protection,motor direct start
Power 9.5kw
6.Environmental system
