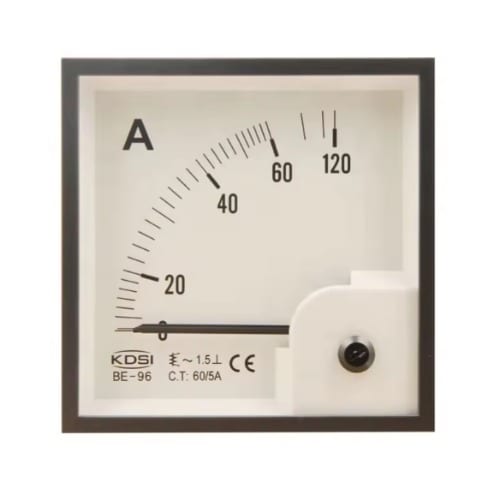

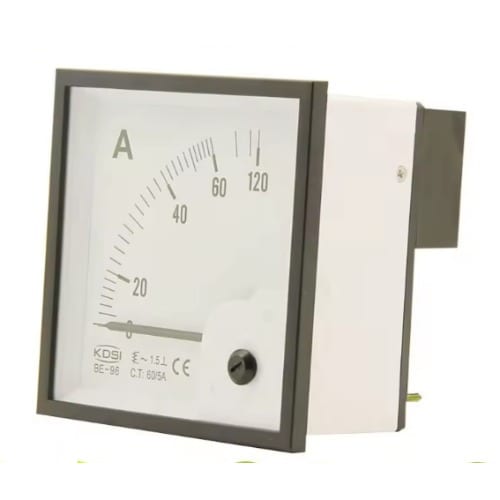

An Analog meter is a permanent magnet moving coil (PMMC) instrument. This means when the current is passed through the coil, the coil moves in a magnetic field that is produced by analog meter (permanent magnet). A pointer is attached to the coil.
Specification:
- Model: SF-72
- Measuring Range: AC 0-120A
- Accuracy Class: 2.5
- Display Type: analog only
- Overload Ratio: 100%
- Damping Time: ≤4s
- Maximum Voltage Range : 120A
