Buy 63 Amps , Change Over Switch in Nigeria

63 Amps , Change Over Switch

₦ 856,810.20 ₦ 901,905.47 -5%

0 No Reviews

Product SKU: RENG48902

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Priforma ATS is designed with an intelligent dual/tri-supply controller module with configurable function, automatic measurement, LCD, and digital communication. And with motorized two-stage PC class switches that are made to deliver high performance and reliability for demanding domestic and industrial loads.
An Automatic Transfer Switch (ATS) is a piece of critical equipment that alternates the source of power, between utility power and backup power, ensuring power systems stay online.
It switches the source of power between the primary (utility/ grid) and secondary (backup /generator) when there is an abnormal condition e.g. Power loss, over/under voltage, over/under frequency, loss of phase and other abnormal conditions.

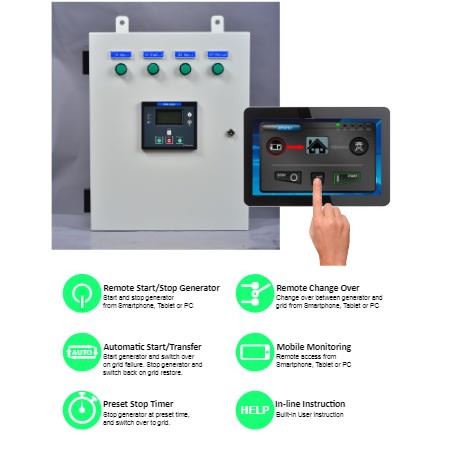

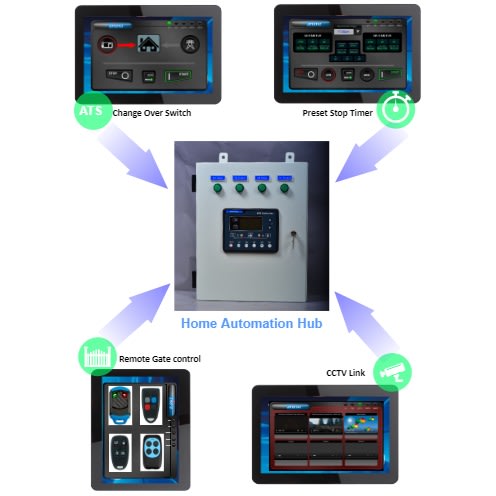

Software Features.

1 Remote Start/Stop generator.
2 Remote Change Over between Generator and Grid.
3 Automatic Start/Transfer
4 Mobile Monitoring
5 Preset Stop Timer.
6 Remote Gate Control Link.

Change-Over Switch Features.

1 132x64 LCD with backlight, multilingual interface and push-button operation.
2 System configurable as: “S1 Mains, S2 Mains”, “S1 Mains, S2 Gen”, “S1 Gen S2 Mains”, “and S1 Gen S2 Gen”.
3 2-way 3-phase Voltage, Frequency and Phase measurement and display.
4 Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, 2-phase 3-wire and, single-phase 2-wire,).
5 S1/S2 with separate over current warning/ trip alarm.
6 NEL (Non-essential Load) trip function.
7 S1/S2 Total Close Times measurement and display.
8 Continuous power supply time and S1/S2 total power supply time display.
9 Sync Transfer function; displays Voltage Difference, Frequency Difference and Phase Difference.
10 Two Generator run modes: Cycle Run, Master Run and Balance Run.
11 Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection.
12 Automatic/Manual mode. Forced switch close/open possible in manual mode.
13 Real-time clock (RTC), Event log with 99 records and controller password protection.
14 Operational Statistic Data Recording
15 Controller with 2 isolated neutral lines, and automatic switch re-closing.
16 PC class motorized two-stage transfer switch.
17 Phase Isolation Design. Each phase is molded and enclosed separately in an insulated 1-phase structure.
18 Safe Terminals. Phases designed with one dynamic and two static electrical contacts in a “V” shape structure, to give adequate contact pressure and maintain safe conducting performance, eliminating short-circuiting.
19 2-Coil design. With simple operation mode using 2 coils, each coil operated independently by each of the two power sources.
20 Power Saving. The coil is in an instantaneous excitation mode with very little power consumption. The controller is powered by DC 8.0V~35.0V. It enters power-save mode after two minutes of inactivity.
21 Longer Operation Life. Each coil is energized only for the period of transfer which can extremely extend the life.
22 Scheduled Run, start generator set once a day/week/month with/without load.
23 Battery Charger. Keeps the generator battery on float charge and prevents run-down.
24 With RS485 isolated communication interface. Remote telemetry and control using the ModBus communication protocol can remote start/stop the gen-set and remote control the ATS to close or open.

NOTE.

Must be installed by a certified technician.

Installation N25,000
