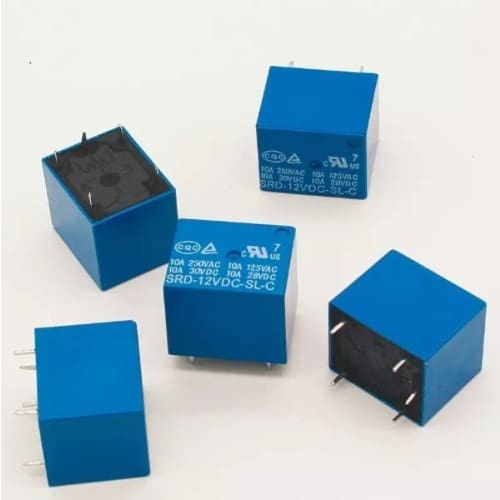

Buy Type 12v Dc Power Relay - 5 Pcs/Lot

Type 12v Dc Power Relay - 5 Pcs/Lot - Srd-12vdc-sl-c T73-12v 5 Pin Pcb

₦ 5,940.00 ₦ 6,000.00 -1%

0 No Reviews

Product SKU: RENG436197

Quantity

In Stock

Product Highlights

Relay is a remote control electronic switch normally controlled by another switch, computer or control module. Functioning as a standard 12 volt replacement or addition for full voltage, these relays are a great option for equipment existing in vehicles today. The mounting bracket included with the relays allows for the relay to be mounted directly to a vehicle or other electrical application. These relays are an optimal solution for full voltage applications on a variety of vehicle equipment including head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, and more. Choose from a 12V DC relay without a resistor. Both are designed to deliver superior, long lasting performance.

Mechanical life - no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50 amps.

30/50 Amp 12V DC.

Permissible ambient temperature: -40° C to 85° C.

896H-1CH-D1-12VDC = Item #73980.

Relays are switches controlled by electrical power, like another switch, computer or control module. The purpose of a relay is to automate this power to switch electrical circuits on and off at particular times. The real benefit behind a relay is more than automation. They also provide the ability to switch multiple circuits, including different voltage types, within the same relay at the same time.

12V DC relay switches are the best solution for full voltage applications, as they allow a low current flow circuit to control a high current flow circuit, like a vehicle's horn, headlights, auxiliary lamps, fan motors, blower motors and countless pieces of equipment existing on vehicles today.

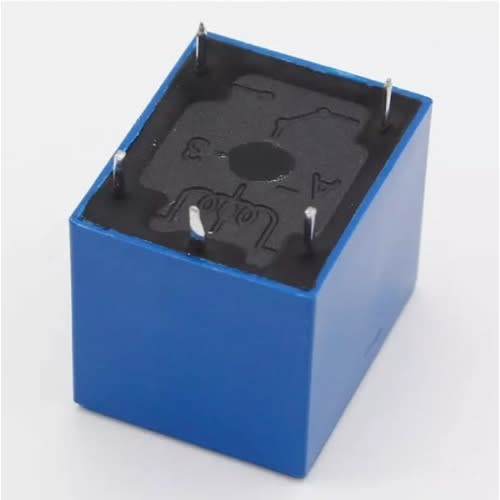

Pin Configuration

Pin Number

Pin Name

Description

Coil End 1

Used to trigger(On/Off) the Relay, Normally one end is connected to 12V and the other end to gr

Common (COM)

Common is connected to one End of the Load that is to be controlled

Normally Close (NC)

The other end of the load is either connected to NO or NC. If connected to NC the load remains connected before trigger

Normally Open (NO)

The other end of the load is either connected to NO or NC. If connected to NO the load remains disconnected before trigger
