1.1X 13A Solar Contorller
2.1X User Manual

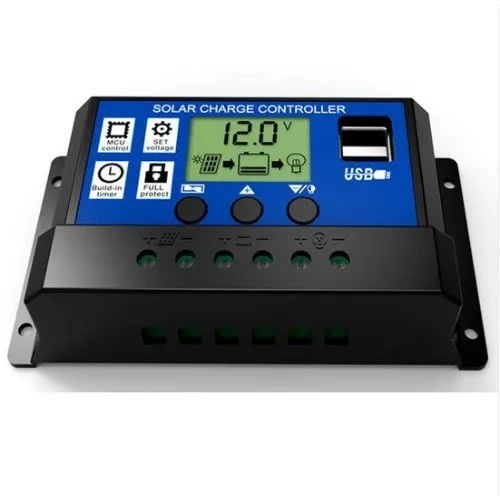

the kw1210 controller is a kind of intelligent, multi-purpose solar charge and discharge controller. Fixed LCD with a very friendly interface is used in this product; various control parameters can be flexibly set, to fully meet your various application requirements.
>>PRODUCT FEATURES
1. Built-in industrial microcontroller.
2. Big LCD, all adjustable parameters.
3. Fully 4-stage PWM charge management.
4. Built-in short-circuit protection,open-circuit protection, reverse protection, and overload protection.
5. Dual MOSFET Reverse current protection, low heat production.
>> SYSTEM CONNECTION
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when installing!
An improper sequence order can damage the controller
