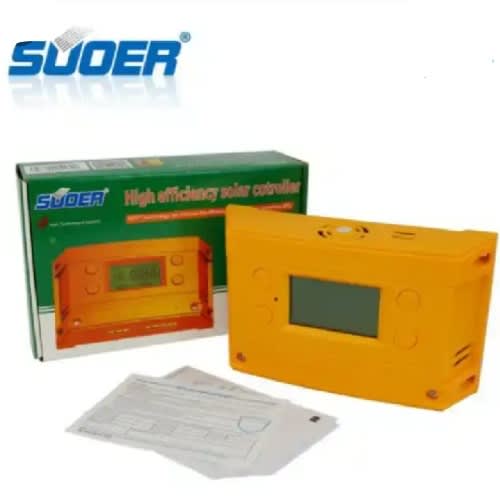

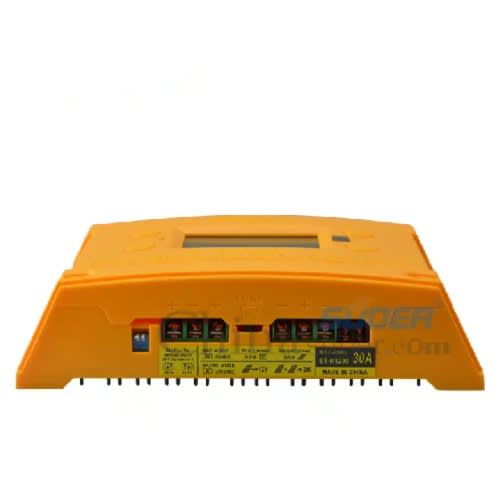

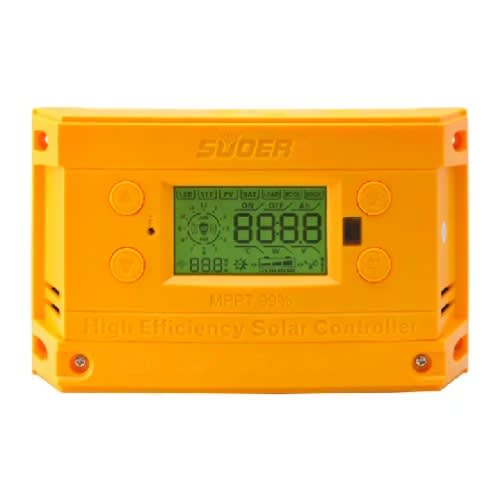

SUOER ST-H1230 MPPT SOLAR CONTROLLER
Features:
MPPT technology
1. Clock timing function:LED/DC Status
2. LED/DC ,Solar energy/Battery/Load/Model/Display,Day/Night Display,Battery Electric Power/Battery Voltage System Display.
3. Built-in two 5V 1A USB Interface.
4. Solar Charging Power Real Time Temperature.
5. Reverse protection,short circuit protection
6. Designed for 12V/24V solar power system
7.Hanging style design makes it convenient to install
8.Available in 10A/20A/30A
9.MPPT controller Connected to the PC,it's Convenient query the whole PV power generation system information and modify the other parameters
Specifications
Model |
ST-H1210 |
ST-H1220 |
ST-H1230 |
To adapt to the battery voltage |
12V/24V Adaptive(Battery<16V;12V Stsyem Battery>18V;24V System) |
Rating charger voltage |
50V |
Rating charger current |
10A |
20A |
30A |
Recommended power of solar panel |
12V Open-loop Voltage 18-24V Standard Solar Panel 150W*1 24V Open-loop Voltage 36-48V Standard Solar Panel 300W*1 |
Recommended number of solar panel |
1 Pieces in parallel |
2 Pieces in parallel |
3 Pieces in parallel |
Charging way |
Intelligent Charging MPPT Maximum Power Point tracking |
Constant voltage charging voltage |
Default:14.2V(24V battery*2)parameters can be set in menu /Quick switch availabe |
Constant current charging current |
10A |
20A |
30A |
Under-voltage Protection voltage |
Default:10.5V(24V battery*2)parameters can be set and adjusted in menu |
Owe pressure recovery voltage |
Default:12.5V(24V battery*2)parameters can be set and adjusted in menu |
Battery charge voltage summer and winter temperature compensation |
16mV/°C @12V |
32mV/°C @24V |
Load overload automatic Recovery time |
30s |
DC output |
5V 2.1A |
Double USB output |
9V/10.5V/12V 1A Output voltage can be remotely controlled |
Stand-by power consumption |
<20mA |
Operating temperature range |
-20°C~55°C |
Overall dimensions |
208mm*127mm*53mm |
Installation of fixed size |
192mm*96mm |
Product weight(G.W) |
0.52kg |
0.54kg |
0.56kg |
