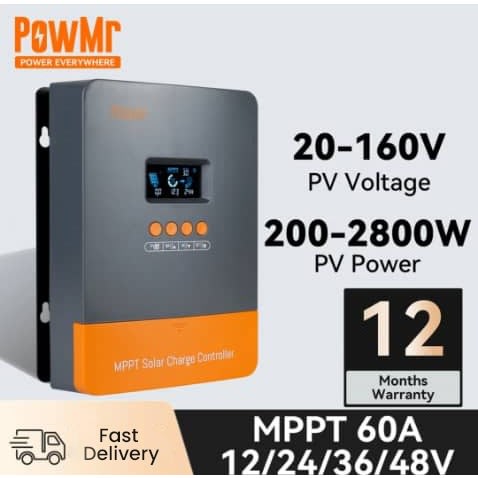

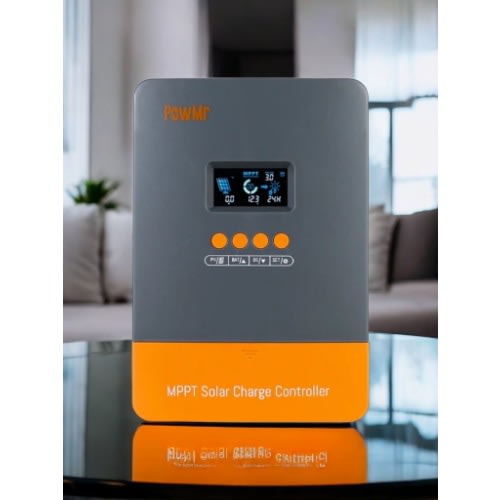

Buy PowMr Mppt Solar Charge Controller 60a 12/24/36/48v Auto

PowMr Mppt Solar Charge Controller 60a 12/24/36/48v Auto

₦ 123,750.00 ₦ 125,000.00 -1%

0 No Reviews

Product SKU: RENG589630

Quantity

In Stock

Product Highlights

Advanced version of PowMr 60A MPPT Solar Charge Controller - 2022 model. PV conversion efficiency 99%

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Warranty Period	1 Year

PowMr 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

It comes with a number of outstanding features, such as:
* MPPT 60A solar charge controller
* 100% MPPT technology
* 0 Layer, easy installation, easy set up
* Built-in DSP controller with high performance
* Automatic switch for 12V/24V/36V/48V battery bank
* 3-stage charging optimizes battery performance
* Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
* Over-temperature protection
* Troubleshooting promotion function.

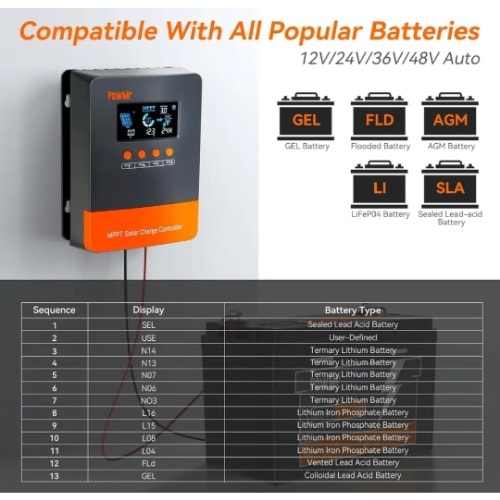

* Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
* Easy to be mounted
Specification
Technical Specification for Selection Guide
Models
POW-M60-PRO
Charging mode
MPPT Maximum power point tracking automatically
Charging
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type
DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition
1 2V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V-DC60V)
Soft start time
<1S

PV utilization >99%
Input specification
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)
12V system (DC20V-DC80V)
24V system (DC37V-DC105V)
36V system (DC50V-DC160V)
48V system (DC72V-DC160V)
The maximum PV input voltage (Voc)
DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)
12V system (720W)
24V system (1440W)
36V system (2100W)
48V system (2800W)
Output specification
Selectable battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage
Refer to Batteries charging reference
Floating Charging Voltage
Refer to Batteries charging reference
Overcharging protection voltage
12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current
60A
