Product SPECIFICATION:
Input Power: AC 85V-250V
Output voltage: Decided By the COM PIN INPUT
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dBm
Transmitting distance: 200 meters indoors
Decoding mode: MCU software decoding
Learnable Transmitters: 1-20 transmitters
Support remote type: Learning code (1527)
Switching Modes:
Both Momentary & Toggle

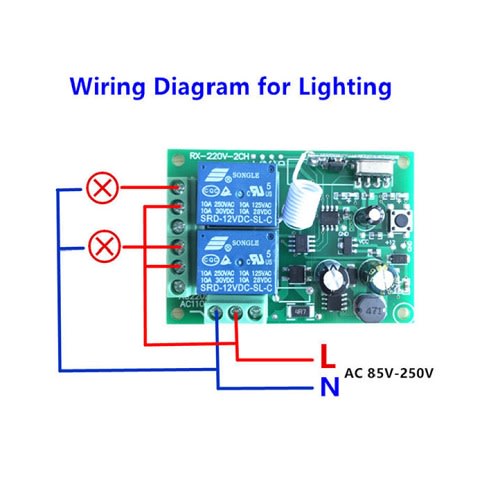

Wiring type: fixed terminal
Switch Output: normally open & normally closed.
Dimension of PCB
(L, W, H)
35*30*18mm
1 3/8 * 1 3/16 * 11/16"
Package Includes

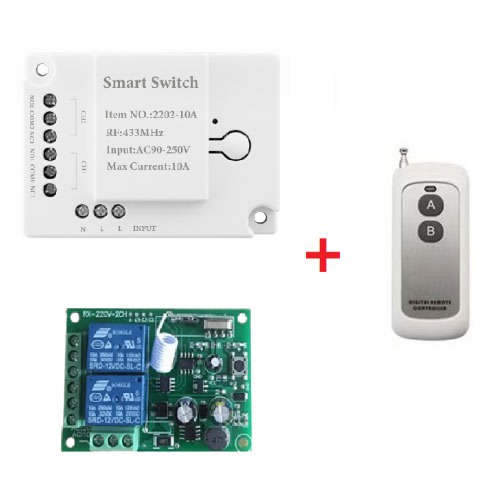

1 X 2 Channel Panel With Casing

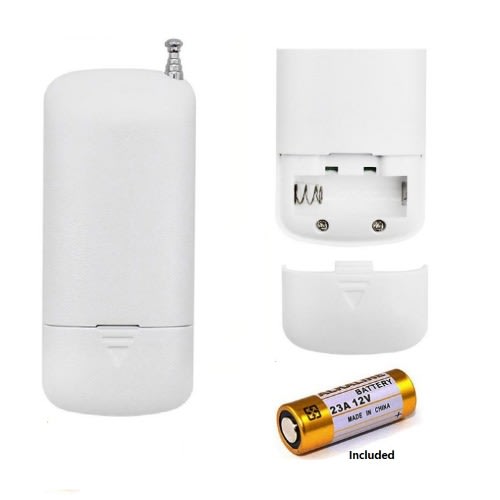

1 x 2 Button Remote
NOTE Extra remote is available.
