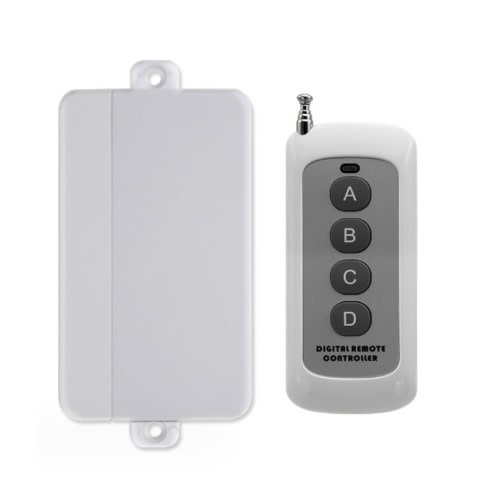

Remote Transmitter
Channel: 4 CH
Operating Voltage: DC12V (23A battery included)
Operating Current: 30MA
Operating Frequency: 433MHz
Frequency Distance: 200 meter(open space)
Encode: Learn Code (Can clear and learn).

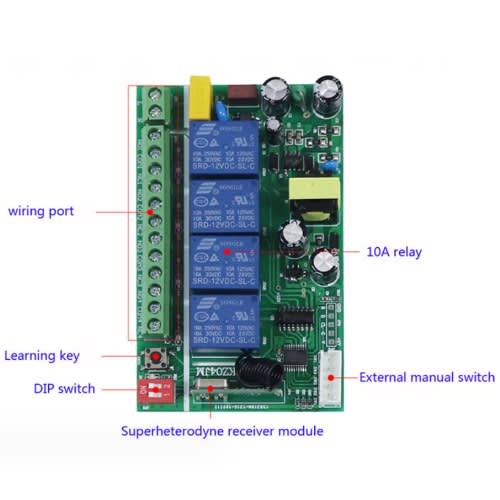

4-channel Receiver
Decode: Learning code
Working Voltage: 110V~220V
Output way: Momentary/Toggle Latched Adjustable
Maximum Load Current: 10A
Relay Load:10A 1V-250V 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Receiver Sensitivity: -107dBm
Working temperature : -40\'C - +70\'C
Size: 8.8*6*3 CM
Working modes:
1) Toggle/Self-Lock: Press->On; Press again->Off
Pressing one button for one time is working/ON Press the same button again is stop/OFF.
2)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button that is working /ON. loosen your finger is stop/OFF.
3) Latched/Inter-Lock: Press->On; Press other button->Off
Press one button is working/ON, press another button is stop/OFF.
Work model Set:(learn controller key choice model
1. Self-lock/Toggle: P1 to ON, P2 not to ON
2.Jog/(momentary): P1 P2 All not to ON
3. Inter-lock /Latched: P2 to ON, P1 not to ON
Papackage contains
1 x 110~220V 4Channel Switch Receiver (with cover)

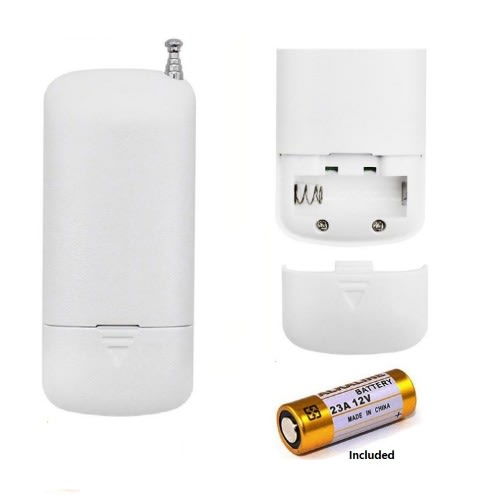

1 x 4Key Remote Control Transmitter (Included 23A Batteries For Controller)
