Performance Range?
Max. head: 24m
Max. flow: 38 m3/h
Power: 0.18 to 2.2 kw
Operating conditions:
Max. liquid temperature: 40?
Max. immersion depth: 5m
Max. solids size: 8/15mm
PH valve of liquid: 4-10
The kinematics viscosity of liquid: 7x10-7 to 23x10-6 m2/s;
The maximum density of the liquid: 1.2x103kg/m3;
Main Materials:
Motor case and Capacitor Cover: cast iron HT200
Pump body: cast iron HT200
Impeller: cast iron semi-open type vortex impeller

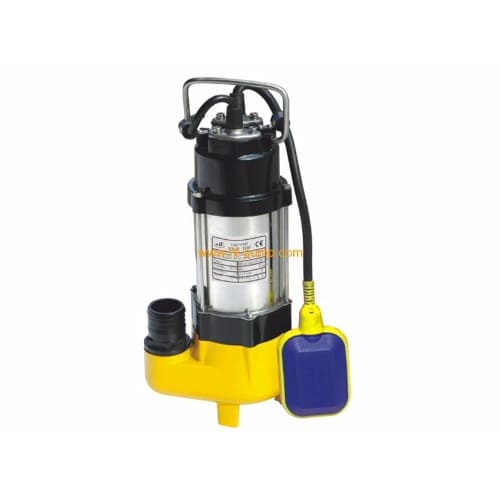

Function and Feature:
The is V series sewage pumps, a branch of single phase and three phase drainage pumps, will be your ideal drainage helper. The letter "V" which substitutes for the letters "WQ" indicates the distinct design of the filter and the broadness of the high efficient area. It can work safely and efficiently at high flux with the features of complete heads. It is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is about 15mm/25 mm/35mm. The selection of bottom suction structure, stainless steel and cast iron make the pumps has the capabilities of complete drain and high resistance of abrasion and corrosion. The float switch can automatically control the on/off of power when it overheated or over currented, thus guarantee the security and reliability of pump's run even in the atrocious environment.
