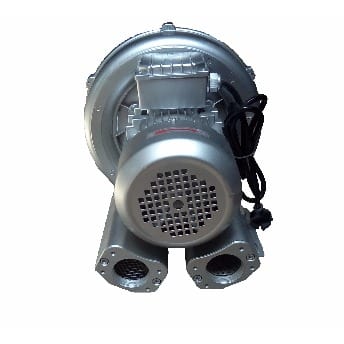

1HP Vacuum Pump, Air Blower Pump, industrial pump,
The air flow capabilities of our blowers range from 60 to 2480 m3/h, the max vacuum pressure could reach -500mbar, and the max compress pressure could reach 600mbar, the power ranges from 0.25KW to 29KW. We only produce side channel blowers.
The advantages of our products:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Low noise
7. ATEX explosion proof motor is available for all the blowers. We are the only manufacturer of blower which has the authorization to produce ATEX explosion proof motor.
8. The energy efficiency for the motor of 2.2kw, 3kw and 5.5kw could reach IE2, the others are IE1.
Model Stage Frequency Power Voltage Current Airflow Vaccum Compress Noise
HZ KW V A m3/h mbar mbar dB(A)
510 H06 Single 50 0.85 200-240Δ 345-415Y 4.2Δ/2.4Y 210 -110 100 64
60 0.95 220-275Δ 380-480Y 4.0Δ/2.3Y 255 -140 150 70
