Performance Range?
Max. head: 144m
Max. flow: 46.5 l/min
Power: upto 1.5 Hp
Operating conditions:
Water temperature up to 35 Cent. Degree.
Maximum sand content: 0.25%
Minimum internal diameter of well: 3"
Maximum immersion depth: 80m.
Maximum start: 20 times/h
Application:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Motor and Pump:

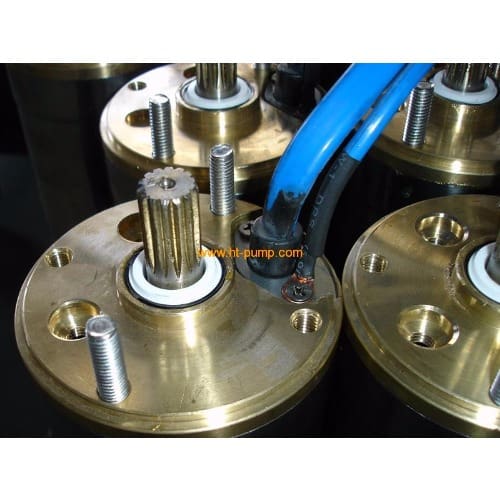

Rewardable oil-filled submersible motor
220V~240V 50Hz/60Hz
Control box with capacitor, on request.
Pumps are designed by casing stressed.
NEMA dimension standards
Curve tolerance according to ISO 2548
Protection Grade: IP 68
Insulation class: Class B
