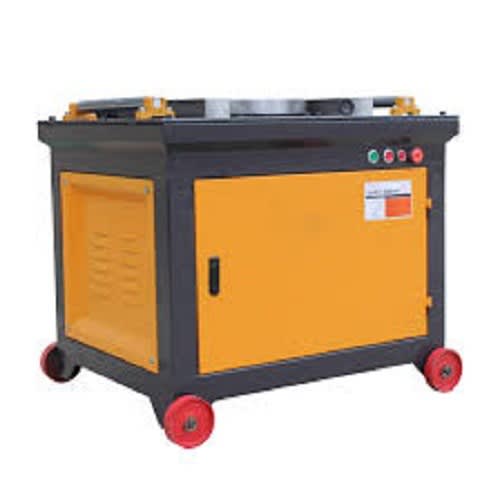

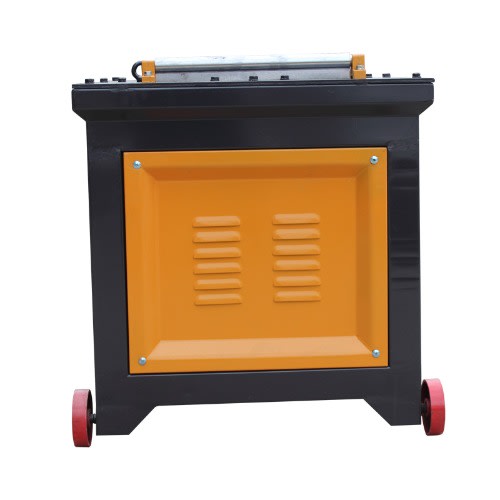

Rod Bender 40mm
this Machine Can Continuously Bend Various Stirrup Shapes And Is Used In Construction, Bridge, Highway, And Rebar Factories to Produce Rebar Hooks And Stirrup Products. This Machine Is Used For Straightening And Bending Tmt Bars In Construction projects. Rod Bender Machine Is Boisterously Designed For Lifelong Operation Making Them Uncomplicated To Use
specification
- power Electric
- max Bending Radius 200-250 Mm
- max Bending Angle (Degrees) 340 Degree
- motor Speed(Rpm) 1440
- bending Diameter 6-40mm (Tmt, Tor) (Ms, 6-40mm)
- Gear Oil With Machine 10 L At Machine
- bar Dimension Up To 40 Mm
- bending Speed 3 Sec (3-15r/Min)
- It is mainly used to bend the round steel with 6-42mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
- All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.
- GW42 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.
- Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
- Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
- Performances also under heavy loads and long working life.
- Two limit-switch to ensure the accuracy of the bending angle.
