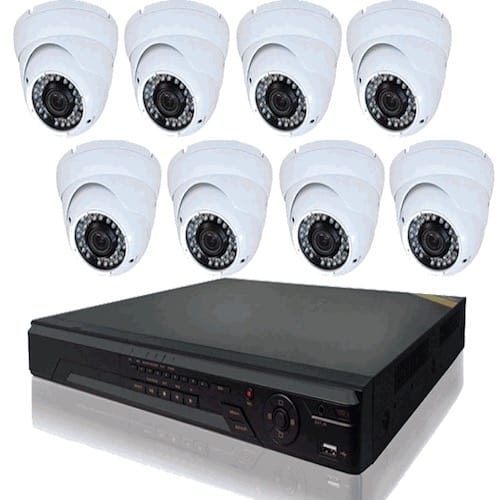

8 Channel CCTV DVR Camera Kit With 900TVL 20m Night Vision Longse 8CH DVR Kit CCTV DVR for Home DVR Security Camera
Main feature:
1.1 pc 2CH D1+6CH CIF DVR
2.8pcs CMOS 900TVL cameras
3.All the accessory for system
4.Single Portable Packing
DVR specifications:
System Model D6008S
Main Processor High performance embedded microprocessor HI3515
Operating System Embedded LINUX
System Resources Pentaplex function:live,recording,playback,backup & remote access
User Interface GUI,on-screen menu tips
Display 1/4/8/9
Video Video Standards PAL 625 line,50 f/s;NTSC 525 line,60 f/s
Video Compression H.264 main profile
Video Recording D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
Motion Detection Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
Audio Audio Compression G711A
Bidrectional Talk Support
Record & Recording Mode Manual>Alarm>Video Detection>Continuous
Playback Playback 1~8channels playback simultaneously
Search Mode Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Space Occupation Audio 28.8MB/H ;Video 25~450 MB/H
Backup Record Storage Local Hard disk and Network
Backup Mode Network download/Flash stick/movable HDD/SATA HDD
Interface Video Input 8 channel
Video Output 1channel TV output BNC,1.0Vp-p,75Ω,1 VGA output(optional),HDMI
Audio Input 4 channel
Audio Output 1 channel
Alarm Input N/A
Relay Output N/A
Net Interface RJ-45 (10M/100M)
PTZ Control 1 RS485
USB Interface 2 x USB2.0
Hard Disk 1 SATA ports(Max 3TB)
Environmental Power Supply 12V/2A
Power Consumption <10W(not include Hard disk)
Working Temperature 0°C-+55°C
Working Humidity 10%-90%
Atmosphere Pressure 86kpa-106kpa
Dimension 255MM(width)* 235MM(length)* 41MM(highly)
Weight 14 KG
Camera Specifications :
Image Sensor
1/4” DIS CMOS
Effective pixels
PPAL: 720*576 NTSC:720*576
Resolution
900 TVL
Color/BW
Color
System of Signal
PAL/NTSC
Minimum Illumination
0.5 Lux/F1.2
Synchronizing System
Internal
S/N Ratio
>50Db
Auto Electronic shutter
1/50~1/100,000SEC ON/OFF
Video output
1.0Vp-p 75 ohm BNC
Lens
Board Lens 3.6mm
IR Range
24 PCS 5MM IR LEDs, 20 Meter IR distance
IR-CUT
YES
Weather Proof Standard
IP-66 (for bullet one)
Power supply
DC12V
Power consumption
300mA
Operation temperature
-10~+50 Celsius
Storage temperature
-30~+80 Celsius
