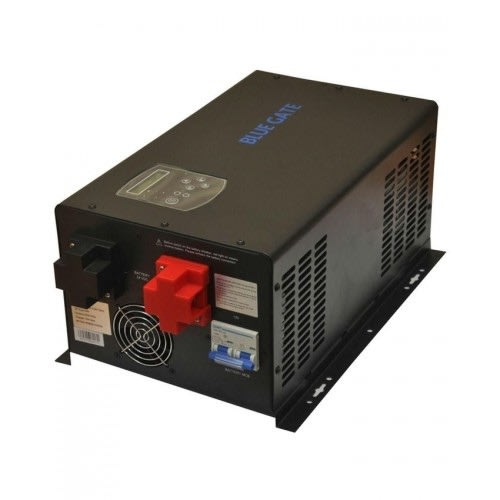

The 3.5kVA 24V Bluegate inverter contains a powerful smart charger and produces a pure sine wave, which is a good source of backup power for sensitive equipment. The Bluegate inverter is an ideal choice for any energy backup system that will power high loads continuously without any interruption. The 3.5kVA inverter is designed to deliver a similar output than a 7kVA diesel generator when coupled with a minimum of two(2) 200Ah batteries and a 2kW Solar System.
The 3.5kVA 24V Bluegate Inverter has the following features:
- Durable and Reliable Microprocessor based Inverter/Charger
- Ultra Clean pure sine wave output with less than 5% Total Harmonic Distortion
- Suitable for all types of load like Resistive, Inductive and Rectified Load
- User friendly Digital Display/Interface
- Powerful 300% surge power
- Low sleep mode power consumption of less than 5W
- Phase & Frequency synchronization auto-tracing for seamless transfer time
- Programmable larger current , three stage battery charger
- Long backup time up to 10hours (based on the battery bank and loads)
- Easy to install and maintain
SPECIFICATIONS OF SM-SERIES INVERTER (BG3500)
- Model BG3500
- Output Power 2500W
- AC INPUT
- Voltage 150V - 254V
- Nominal Frequency 50Hz/60Hz(Auto sensing)
- Generator Mode Yes
- OUTPUT
- Nominal Voltage 220V±10%
- Nominal Frequency 50Hz ± 0.3Hz
- Waveform Pure Sine Wave
- Surge Protection 7500W 10500W
- Efficiency ?80%
- Power save mode ?20W load
- Transfer Time 16±4ms
- Protection Overload/Short Circuit/Overheat
- THD ?5%
- Inductive/Motor load Yes
- Resistive/Rectifier load Yes
- BATTERY
- Nominal Voltage 24VDC
- DC Voltage Range 20V - 30V
- Charging Current 10A - 70A
- Charging Voltage 26V - 30V
- Charging Stage 3 stage - Bulk, Boost & float
- OTHERS
- User Interface LCD, LED and Buzzer
- Operating Temperature 0?C - 40?C
- Operating Humidity 5% - 95%RH
- Cooling Variable Speed Fans
- Wall Mount Yes
- Gross Weight 22kg
- Dimensions(DxWxH)mm 465x225x185
- Packing (DxWxH)mm 630x360x268
