Specifications:
-Name: Pure sine wave power inverter
-Input voltage: DC 12V for car (9.8~15V)
-Output voltage : AC 220V
-Output frequency: 50Hz
-Peaks Power : 4000W
-Rated power: 1000W (Please make sure that the total rated power of the connected devices is ≤ 1000W)
-Product size: 21X10.3X6cm
-Output Waveform: True/pure sine wave (<3% THD)
Efficiency: 90≥%
-No Load Current Draw (DC side) <0.6 A
-8 Safety Protection Function:

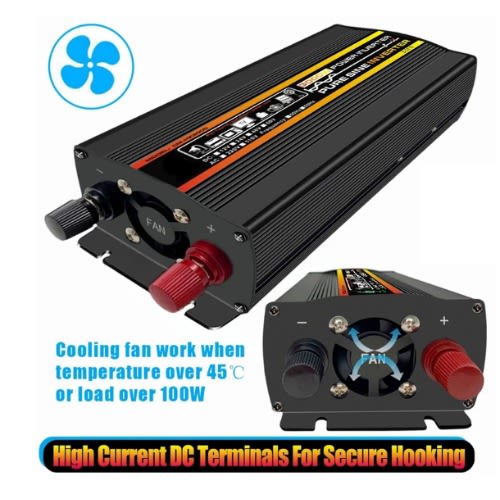

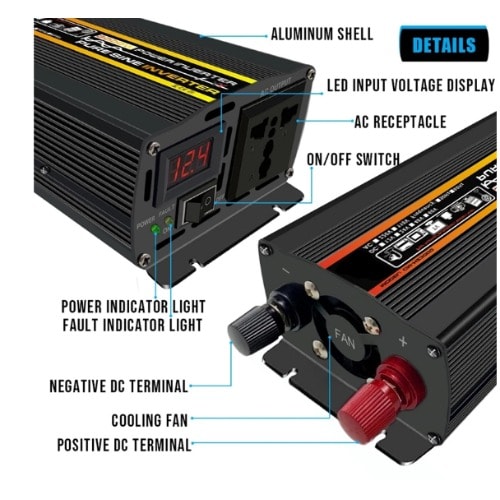

[Pure Sine Wave] Converts 12V DC to AC 220V household wall power with continuous 1000Watts output ( 4000Watts surge capability) with 1 AC receptacles, one LED Voltage display, high current DC terminals and two LED work lights.
[Strong and Durable] Aluminum alloy housing provides advanced protection from drops and bumps.
Battery Usage Time Calculation:
1)The working time of inverter, it is depend on the battery power and load power.
2)Formula: Working time (hours)= Battery Capacity X Battery Voltage X 0.8X0.9/Load Power
3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.
The working time is = 12(V) X 60(AH) X 0.8 X 0.9/100(W)=5.18(hours)
(Note: 0.8 is battery discharge coefficient, 0.9 is inverter conversion efficiency)
