This 12V 1-Channel 433Mhz Wireless RF Remote Control Transmitter Switch With Receiver can be used in homes, farms, factories, offices, laboratories, supermarkets and so on. This remote controls garage door, Electric door, house door, shutter door, expansion door, gate door and road gate. Remote can also control Electric curtain, Water pump, Fan, Lamp, LED light bulb, ventilation device and Signal transmission
Relay Receiver Board Parameter
-
Working Voltage: DC 12V
-
Input/Output Voltage on Relay: 1~250V
-
Max Relay Current: 10A
-
Max Relay Load: 2200W
-

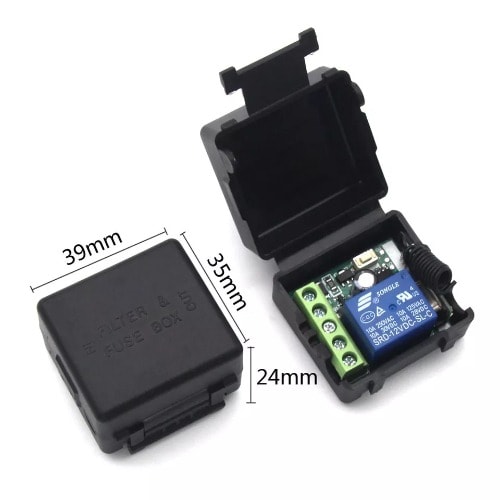

Circuit Board Size: 3.5*3.0*1.8cm(1.37*1.18*0.7in)
-
Receiving Range: more than 50ms (on open space)
-
RF frequency: 433MHz
-
Pin: NO / COM / NC
-
Working temperature: -30~+80 degrees
-
Receiving Sensitivity: >97dbm
-
Amount of storage remote controls: 25 pieces
-
Support encoding: 1527 Learning code /2262 fixed code
-
RF Operating mode: ASK superheterodyne wireless reception
-
Remote operating mode: Momentary Mode / Toggle Mode / Latched Mode / Time Delay Mode
Working Modes: 4 modes
- Momentary mode
- Toggle mode
- Latched mode
- Time delay mode
- Momentary mode: Press and hold A button, will work. Release A button, will stop.
- Toggle mode: Press A button, will work; press A button again, will stop; Press B button, will work; press B button again, will stop.
- Latched mode: Press A button,will work;Press B button again,will stop.
- Time delay mode: Press and hold on button “A” , turn on; Release the button, turn off after 5 seconds (or 10/15 seconds )

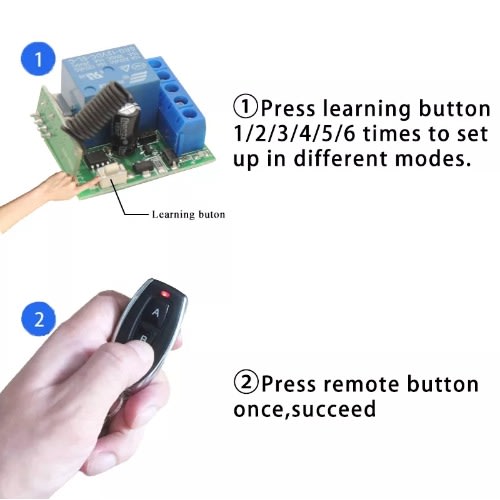

How to program
- Momentary mode: Press learning button once,press A button once, succeed.
- Toggle mode: Press learning button twice,press A button once,Press B button,succeed.
- Latched mode: Press learning button 3 times, press A button once, press the B button once. Succeed.
- Time delay mode: Press learning button 4/5/6 times, press A button once, succeed.
- Reset:Press the learning button 8 times. The existing data will be deleted succeed.
