Description:
This Product includs two small gadgets, including a Remote Control Transmitter and Remote Control Relay Receiver Module, which is a entire transmitting and receiving remote control system.
And comes with ultra-strong function and bring you much convenience in your daily life. It support remotely and wirelessly control your Garage Door, Electronic Gates, Electric fence and
general Electrical Appliances including telecommand equipments. Bringing you brand new experience of remote control, you can not miss it. Watch attached video to understand. 22OV input
is also available
Features
*The Transmitter supports Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Receuver Panel.
*The Receiver Module supports Multiple Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
*Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.
*Support storing the quantity of remote control: 25Pcs (NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost).
*Adopts imported high-frequency triode, owning 10mW Transmitting Power.
*Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
*Widely Use: Perfect Suitable for controlling electrically operated gate, retractable door, garage door, electric curtain automobile, motorcycle and other telecommand equipments.
Note:
1.This remote control transmitter only supports the learning code (1527) of the receiver
2.This remote can not be programmed.
3.We don't offer retail package, but we will pack it well before shipped out.
Specifications:
Product Type: 4-CH Remote Control Transmitter + Receiver Module
RF Frequency: 433 MHz
Encoding Type: Learning Code(1527), Fixed Code(2262).
RF Working Mode: Superheterodyne Reception
Modulation System: ASK
For Transmitter:
Channel Supported: Four Channel
Buttons: Four Buttons
Power by 27A 12V battery
Operating Voltage:DC12V
Operating Current:12mA
Transmitting Power: 10mW
Transmission Distance: 50m(free space).
Color: Brown
Main Item Size: 6.5 * 3.2 * 1.2cm / 2.55 * 1.25 * 0.47in
Main Item Weight: 26g/o.9oz
Package Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in
Package Weight: 28g/1.0oz

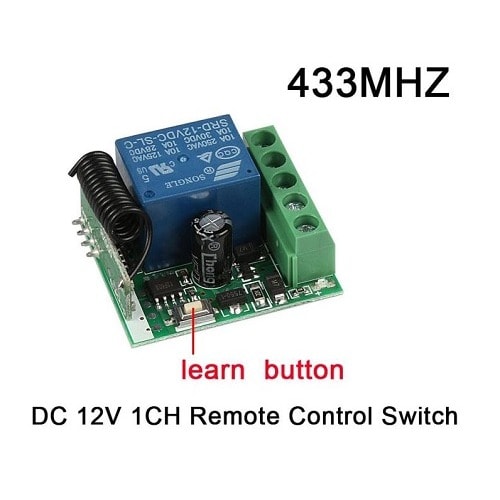

For Receiver Module:
Model: KR1201A
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )
Color: Green (PCB Board), Black(Outside Shell)
Circuit Board Size: 3.5 * 3.0 * 1.8cm/ 1.37 * 1.18 * 0.7in
Circuit Board Weight:16.4g/0.57oz
Package Size:3.9 * 3.5 * 2.5cm / 1.53 * 1.18 * 0.98in
Package Weight: 27.2g / 0.95oz
Package List:
1 * 433MHz RF Remote Control Transmitter (Battery is Included)
1 * KR1201A Single Channel Remote Control Receuiver (Included Outside Shell)
