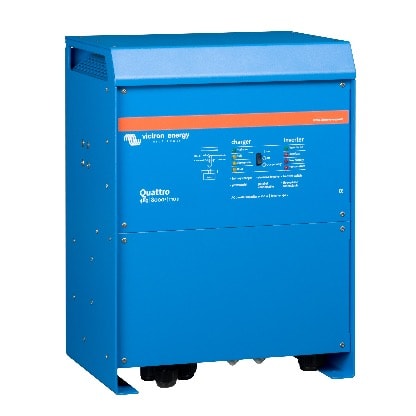

Quattro Inverter & Charger 48/8000/110 - 8KVA
Two AC inputs with integrated transfer switch The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source. Two AC Outputs The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel operation Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA output power and 840 Amps charging capacity. Three phase capability Three units can be configured for three phase output. But that & rsquo;s not all: up to 6 sets of three units can be parallel connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity.

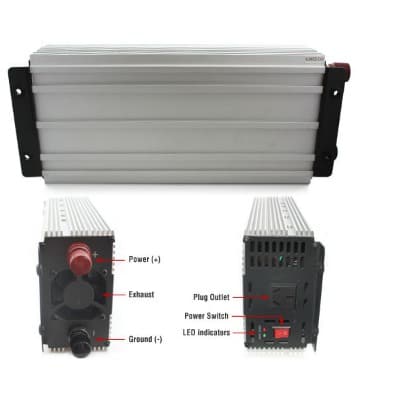

Inverter with 30A Charger - 2000 watts
PLEASE NOTE; NO BATTERY INCLUDED For use in car,boats,trucks,trailers and mobile homes. Take the power inverter to portable and get power to run lamps, radios or TVs. In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances. Ultra-Compact Metal Housing: Small and rugged: stored easily in any tool box, briefcase or glove compartment. Integrated Fuse Protection: Protects your battery and power inverter from damage due to outlet overload. & middot;The inverter can automatically detect low battery voltage and shut down to preserve the battery Overload protection: shutdown and alarm (integrated fuse protection, protects the battery, and power inverter from damage due to outlet overload) Output short: Output short circuit protection. Compliant standards: CB, CE, IEC60950, EN61000, 2006/28/EC Battery protection reverse: By fuse. DC input voltage: 12V DC, 183A, (10-15V) Input standby current (12V DC,+/-5%): & le;0.7A AC output voltage: 230V AC / 110V AC, +/-8% Output power: 2000W, 8.7A Output power (peak watts): 4000W Output frequency: 50 or 60Hz Output waveform: Modified sine wave Low-battery voltage alarm: 10.5V DC,+/-0.5V Low-battery voltage shutdown: 10.0V DC, +/-0.5V Fuse quantity & size: 25A & times;12, Standard auto blade fuse (Internal*) Efficiency: 85 to 90% Thermal shutdown: 65?+/-5? Cooling fan: Yes auto-operation fan (temperature or load) Connection cable: 25.0mm/ 1100mm. Operating temperature: 0~40? Storage temperature: -15?~45? Operating relative humidity: 10%RH~102%RH

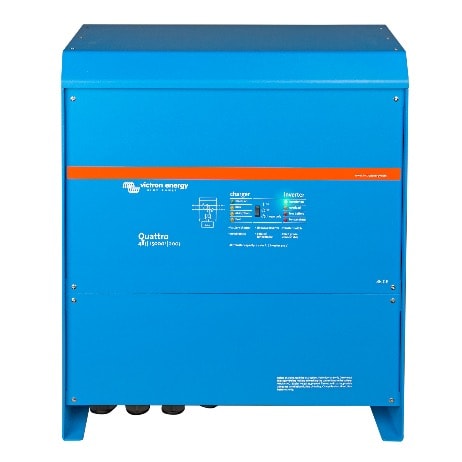

Quattro Inverter & Charger 48/15000/200 - 15KVA
Two AC inputs with integrated transfer switch The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source. Two AC Outputs The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel operation Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA output power and 840 Amps charging capacity. Three phase capability Three units can be configured for three phase output. But that & rsquo;s not all: up to 6 sets of three units can be parallel connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity. PowerControl & ndash; Dealing with limited generator, shore side or grid power The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.
