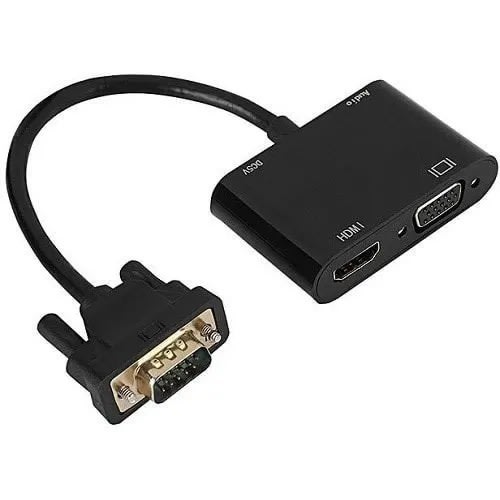

Features:CableDeconn 2-in-1 VGA to HDMI/VGA converter - Work with PC, laptop, TV,TV-Box and other VGA output devices.VGA to VGA + HDMI converter for stable and fast signal transmission.Made of high-quality, strong and durable.User-friendly design - Lightweight & Portable.Plug and play, easy to use.Specification:Type: VGA to HDMI/VGA ConverterModel: D0308: CableDeconnWeight: Approx. 83.7g
Package list:1 * Converter1 * USB Cable1 * Audio Cable1 * Instruction Manual
Use Instruction:
1. Connect the VGA male port to the VGA 15-pin female desktop/laptop/VGA graphics card.
2. Connecting a standard HDMI or VGA cable from an HDMI adapter or VGA port to an external HDMI or VGA port display requires a separate HDMI or VGA cable, which is not included.
3. The external monitor provides a converter for the adapter to connect a micro USB cable to the USB device. This is a necessary (MUST) step, and if you do not use the Micro USB power supply, you cannot output video.
4. HDMI and VGA can be connected at the same time, but HDMI and VGA displays canONLYdisplay the same image.
5. For some screens that do not automatically detect the input device's signal, manually select the monitor signal as HDMI or VGA output is needed.
6. For the audio output of this adapter, please refer to the user's important instructions 2.0 when using the product. (This is important for your proper use of the adapter)
Important Notes:
1. When using this adapter, please connect the micro-usb cable to your USB device to power our adapter.
2. If you want to transmit 1080p video, pictures or other material from your input device to your external large screens, please make sure you have HDMI / VGA 1080p Cable, 1080p HDMI / VGA display, more importantly, your device input must support 1080p.
3. Because VGA is a signal source, and can only support max output resolution 1920x1980, so no matter what is your Max Resolution of your HDMI Screens, HDMI cables, you can ONLY max output 1080p in your external displays.
4. If you connect HDMI and VGA additional displays together, if your HDMI resolution monitor is higher than your resolution monitor, your last resolution output will depend on your relatively low-resolution monitors.
5. If you connect VGA input laptops to your HDMI and VGA monitors together, you can choose dual-mode and extended mode of your input laptop, in extended mode, you can have different views of your laptops input and your two external screens, but your two screens can ONLY show same views.
6. About Audio Output:
(1) If you connect your input device to your HDMI TVs or Monitors with audio output via HDMI source, please connect a 3.5mm audio audio cable from your input jack device to the 3.5mm of the adapter, then your HD TV can transmit audio together.
(2) If you connect HDMI individually to your monitors without audio output, please connect your audio input jack device to your external speakers at the sound output.
(3) If you connect HDMI and VGA to video output together, please connect 3.5mm audio jack from your input device to your external speakers to get the sound.
(4) If you connect VGA individually, please connect from your input devices' 3.5mm audio jack to your external speakers to the audio output.
