Buy Usb To Rs485 /422communication in Nigeria

Usb To Rs485 /422communication

₦ 24,750.00 ₦ 25,000.00 -1%

0 No Reviews

Product SKU: RENG504193

Quantity

In Stock

Product Highlights

Distance: RS485/422: 1.2km (all rates), USB: 5 Meters
Interface Protection: 600W Lightning Strike and surge suppression, +- 15KV ESD protection
Signaling Diagnostics: LEDs for POWER, TX and

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Colour	Black

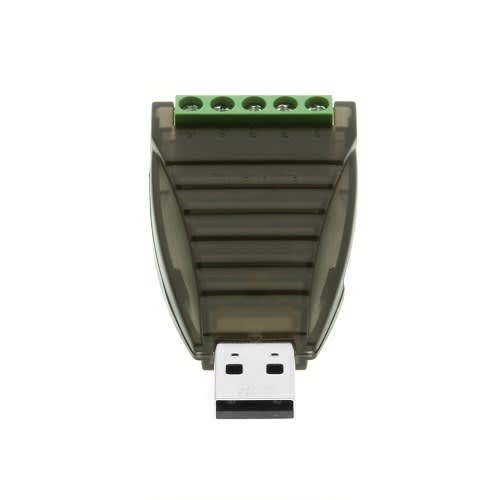

Industrial grade mini RS485 / RS422 to USB converter similar to our part , the difference between the two is that this converter has industrial grade specifications, with working temperatures from -40 to +85 degree Celsius. The housing is made of hardened ABS plastic with a reinforced terminal header for easy connection of communication wires.

This RS485 to USB converter is electrically protected against static electricity, high voltage spikes and other dangerous voltage spikes which can damage your equipment or data signaling. This protection is accomplished by four TVS's (Transient Voltage Suppressors), one for each data line.

Power for this converter is provided from the USB port so there is no need for an external power supply. It is designed around the high performance and very reliable FT232RL processor chip from , so it is fully compatible with all versions of Windows, Mac and Linux.

This particular RS485 to USB converter is designed mainly for industrial environments but is also suitable for most other applications including any general office, commercial and laboratory environment.
It is a bi-directional, (meaning it communicates in both directions) and reliable converter that easily lets you connect any RS485 or RS422 device directly to your computer's USB port, efficiently converting USB signals to half-duplex RS485 or full-duplex RS422 and vice versa.

After installation of the included drivers the virtual COM port will automatically show up in your computer's Device Manager and can be accessed as if it was a standard built-in COM port.

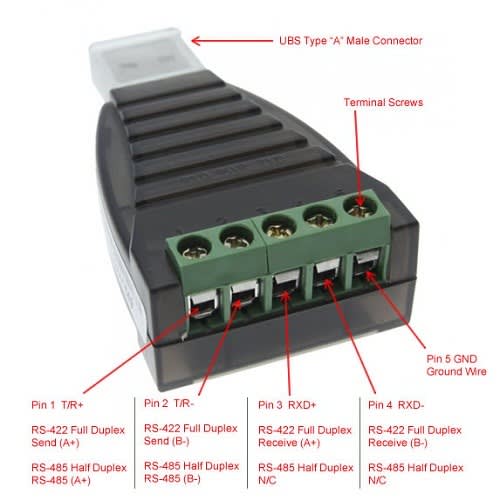

The RS485 / RS422 end is a standard 5-screw terminal header for easy connection of single wires.
Automatic send data control is enabled by default so no external flow or handshake control is needed.

Overall features

USB port-powered converter
High-performance chipset
Output 1: RS485 2-wire half duplex
Output 2: RS422 4-wire full duplex
Interface: Terminal screw connections
Automatic Send Control
Guaranteed genuine non-clone FTDI processor chips
using Windows WHQL certified drivers
Compatible with Modbus RTU/ASCII and BACnet
Up to 32 nodes in network configuration
