Home › Support › BRAVIA TV (LED / LCD / FULL HD) › KDL-40W660E
BRAVIA TV (LED / LCD / FULL HD)
Support for BRAVIA TV (LED / LCD / FULL HD)
KDL-40W660E-BRAVIA TV (LED / LCD / FULL HD)-W600E Series

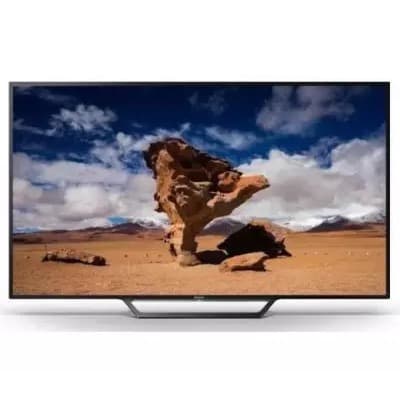

KDL-40W660E
Useful Information
Connectivity Guide
Change Product
Not the product you are looking for?
Overview Downloads FAQs Compatibility Specifications
MODEL YEAR
Model year 2017
DIMENSIONS AND WEIGHT
Screen Size (inch, measured diagonally) 40" (39.9")
Screen Size (cm, measured diagonally) 101.4 cm
Dimension of TV without Stand (W x H x D) Approx. 910x543x70 mm
Dimension of TV with Stand (W x H x D) Approx. 910x591x208 mm
Dimension of TV with Floor Stand (W x H x D) -
Dimension of Package Carton (W x H x D) Approx. 1002 x 628 x 152 mm
Stand Width Approx. 646 mm
VESA® Hole Pitch(W x H) 100x200 mm
Weight of TV without Stand Approx. 8.1 kg
Weight of TV with Stand Approx. 8.7 kg
Weight of TV with Floor Stand -
Weight of Package Carton (Gross) Approx. 12 kg
CONNECTIVITY
Wi-Fi Standard Wi-Fi Certified 802.11b/g/n
Ethernet inputs 1 (Rear)
Bluetooth profile support No
Smartphone connectivity Screen mirroring(Miracast™)
RF (Terrestrial/Cable) Connection Input(s) 1 (Side)
IF (Satellite) Connection Input(s) No
Component Video (Y/Pb/Pr) Input(s) No
Composite Video Input(s) 1 (Bottom)
RS-232C Input(s) No
HDMI inputs total 2 (2Side)
HDCP HDCP1.4
HDMI-CEC Yes
MHL No
HDMI Audio Return Channel (ARC) Yes
Digital Audio Output(s) 1 (Side Hybrid with HP Out, Audio Out and Subwoofer Out with Digital Audio Out)
Audio/Headphone Output(s) 1 (Side Hybrid with Headphone Out, Audio Out and Subwoofer Out)
USB ports 2 (Side/Stacking)
USB HDD Recording No
USB drive format support FAT16/FAT32/NTFS
USB playback codecs MPEG1/MPEG2PS/MPEG2TS/AVCHD/MP4Part10/MP4Part2/AVI(XVID)/AVI(MotionJpeg)/WMV9/MKV/WEBM/WAV/MP3/WMA/JPEG
PICTURE (PANEL)
Display type LCD
Display resolution (H x V, pixels) 1920x1080
3D capability No
Backlight type Edge LED
Backlight dimming type Frame Dimming
PICTURE (PROCESSING)
HDR (High Dynamic Range) compatibility Yes
Picture processor No
Clarity enhancement X-Reality™ PRO
Colour enhancement Live Colour™ Technology
Contrast enhancement Dynamic Contrast Enhancer
Motion enhancer (Native Hz) Motionflow™ XR 200 (Native 50Hz)
Video signal support 1080p(30,50,60Hz), 1080/24p, 1080i(50,60Hz), 720p(30,50,60Hz), 720/24p, 576p, 576i, 480p, 480i
Picture modes Vivid,Standard,Custom,Cinema,Sports,Photo-Vivid,Photo-Standard,Photo-Custom,Game,Graphics,HDR Game,HDR Cinema
SOUND (SPEAKERS AND AMPLIFIER)
Audio Power Output 5W + 5W
Speaker Type Open Baffle Speaker
SOUND (PROCESSING)
Dolby audio format support Dolby™ Digital,Dolby™ Digital Plus,Dolby™ Pulse
DTS audio format support DTS Digital Surround
FM Radio Yes
Sound processing ClearAudio+
Simulated surround sound S-Force Front Surround
Sound modes Standard,Music,Cinema,Sports
SOFTWARE
Operating System Linux
On-board Storage (GB) -
Display Language AFRIKAANS/ARABIC/ENGLISH/PERSIAN/FRENCH/INDONESIAN/PORTUGUESE/RUSSIAN/SWAHILI/THAI/TURKISH/VIETNAMESE/SIMPLIFIED CHINESE/ZULU
Text Input Language ENGLISH/FRENCH/PORTUGUESE/RUSSIAN/TURKISH/VIETNAMESE/SIMPLIFIED CHINESE
Content Bar No
Voice Search No
Electronic Program Guide (EPG) Yes
Internet Browser Opera(Depends on Country)
Application Store Yes(Opera Store)
On/Off Timer Yes
Sleep Timer Yes
Teletext Yes
Twin Picture No
Closed Captions (Analog/Digital) (Analog)-
POWER AND ENERGY SAVING
Screen Size (cm, measured diagonally) 101.4 cm
Screen Size (inch, measured diagonally) 40" (39.9")
Power Consumption (in operation) 60W
Annual Power Consumption* 82kWh/Year(Singapore) , 70kWh/Year(Jordan) , 139kWh/Year(Egypt)
Power Consumption (in standby) 0.50W
Power Consumption (Networked Standby Mode) – Terminals -
Peak luminance ratio for EU 68%
Presence of lead No
Mercury content(mg) -
Power Consumption (On Mode) for Energy Star -
Power Consumption (Standby Mode) for Energy Star -
Energy Star® compliant -
Power Requirements (voltage/frequency) AC 100-240V, 50/60Hz
Power Saving Mode / Back Light Off Mode Yes
Dynamic Backlight Control Yes
Light Sensor -
DESIGN
Frame colour Black
Stand design Black U Slate
BUILT-IN TUNER
Number of Tuners (Terrestrial/Cable) 1(Digital/Analog)
Number of Tuners (Sat) -
TV System (Analog) B/G,D/K,I,M
Tuner Channel Coverage (Analog) 45.25MHz-863.25MHz(Depend on country/area selection)
TV System (Digital Terrestrial) DVB-T/T2
Tuner Channel Coverage (Digital Terrestrial) VHF/UHF(Depend on country/area selection)
TV System (Digital Cable) -
TV System (Digital Sat) -
CI+ -
ACCESSORIES
Optional accessories Wallmount Bracket (SU-WL450(Terminal access limitation))Depends on country selection
